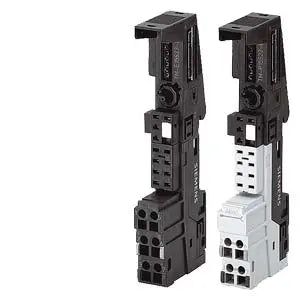

Siemens Simatic DP 5 Terminal module TM-E15S23-01

Product Overview

The SIMATIC DP Terminal Module TM-E15S23-01 delivers reliable terminal connections for ET 200S electronic module applications in distributed automation systems. This 15mm width terminal module features screw terminals with 2x3 terminal connections and continuous AUX1 functionality, supplied in 5-unit packaging for efficient bulk installation in industrial automation projects requiring secure electrical connections for electronic modules.

Key Features

• TM-E15S23-01 Configuration: Specialized terminal module designed for ET 200S electronic modules with proven reliability and performance
• Screw Terminal Technology: Secure 2x3 terminal connections for reliable electrical connections in demanding industrial environments
• Continuous AUX1 Functionality: Uninterrupted auxiliary terminal configuration for expanded connectivity without terminal access restrictions
• Compact 15mm Width: Space-efficient design optimized for high-density cabinet installations in distributed I/O systems
• Multi-Unit Packaging: Supplied in 5-unit packages for efficient bulk installation and cost-effective inventory management
• ET 200S Compatibility: Specifically designed for seamless integration with SIMATIC ET 200S electronic modules
• Industrial-Grade Construction: Robust design for demanding industrial automation environments and extended operational life
• Standardized Mounting: Compatible with standard ET 200S system mounting and wiring practices

Technical Specifications

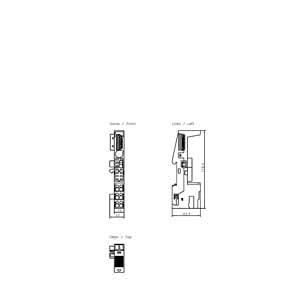

• Module Type: TM-E15S23-01 Terminal Module | Dimensions: 15mm x 120mm x 43mm (W x H x D)
• Terminal Configuration: 2x3 screw terminals | Weight: 0.316 kg (5-unit package)
• Connection Type: Screw terminals | AUX Terminal: Continuous AUX1 without terminal access
• System Compatibility: ET 200S electronic modules | Packaging: 5 units per package
• Package Dimensions: 15.90 x 17.80 x 5.20 cm | Country of Origin: Romania
• Installation Width: 15mm per module | Weight per Unit: Approximately 55g
• Product Status: Spare part (Product cancellation since October 1, 2023)

Applications & Integration

Primary Applications:

• ET 200S distributed I/O systems requiring electronic module terminal connections
• Industrial automation systems with compact screw terminal wiring requirements
• Process control applications needing reliable terminal connections without AUX1 access
• Manufacturing systems requiring secure electrical connections for electronic modules in confined spaces
• Distributed control systems with high-density terminal requirements and 15mm width constraints

System Compatibility:

• Compatible with SIMATIC ET 200S electronic modules
• Integration with SIMATIC S7 controllers via ET 200S interface
• PROFIBUS DP communication protocol support
• STEP 7 engineering environment compatibility
• Standard ET 200S mounting and wiring practices
• Modular scalable distributed I/O system integration

Quality & Compliance

• Status: Spare Part (Product cancellation since October 1, 2023)
• EAN: 4025515059882 | UPC: 662643225228
• RoHS Compliant: Since January 1, 2006 | WEEE: Take-back obligation applicable
• REACH: Contains lead above 0.1% w/w (safe when used as intended)
• Export Control: AL: N / ECCN: N
• Certifications: EMV, FM (hazardous locations), NK/Nippon Kaiji Kyokai (maritime), CCS China Classification Society
• Installation Environment: IP20 protection rating for cabinet installations

Package Contents

• 5 × ET 200S Terminal Modules TM-E15S23-01, technical documentation, installation accessories

Download existing graphical data for this product:

• Technical Datasheet
• Official Support Documentation
• CAD Models and 3D Data
• ET 200S System Manual
• ET 200S Terminal Module Documentation
