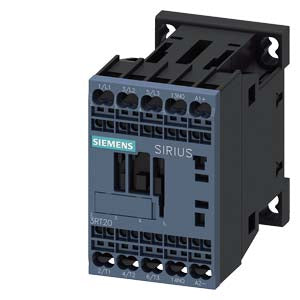

Siemens Power contactor, spring-terminal, size 00, 1NO, 24VDC, 400V, 5.5kW, 12A
Log in to view pricing
Sign in with your trade account to access live pricing and place orders. New to Rubicon Industrial Technology? Create an account in seconds.
Product Description
power contactor, AC-3e/AC-3, 12 A, 5.5 kW / 400 V, 3-pole, 24 V DC, auxiliary contacts: 1 NO, spring-loaded terminal, size: S00 Power contactor SIRIUS 3RT2 for switching motors. The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready. They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection. The comprehensive range of accessories, such as auxiliaryswitches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense. Simple, efficient and always up to date - SIRIUS modular system.
- Modular version: true
- Width: 45 mm
- Depth: 73 mm
- Height: 70 mm
- Operating voltage AC 50 Hz: 690 V
- Rated control supply voltage DC: 24 V
- Rated operation power at AC-3, 400 V: 5.5 kW
- Rated operation power NEMA: 5.516241 kW
- Voltage type for actuating: DC
- Rated operation current Ie at AC-1, 400 V: 22 A
- Rated operation current Ie at AC-3, 400 V: 12 A
- Operating voltage AC 60 Hz: 690 V
- Type of electrical connection of main circuit: Spring clamp connection
- Number of auxiliary contacts as normally open contact: 1
- Number of normally open contacts as main contact: 3
- Rated operation current Ie at AC-4, 400 V: 8.5 A
Key Siemens Features
| Modular version | true |
|---|---|
| Width | 45 mm |
| Depth | 73 mm |
| Height | 70 mm |
| Operating voltage AC 50 Hz | 690 V |
| Rated control supply voltage DC | 24 V |
| Rated operation power at AC-3, 400 V | 5.5 kW |
| Rated operation power NEMA | 5.516241 kW |
| Voltage type for actuating | DC |
| Rated operation current Ie at AC-1, 400 V | 22 A |
| Rated operation current Ie at AC-3, 400 V | 12 A |
| Operating voltage AC 60 Hz | 690 V |
| Type of electrical connection of main circuit | Spring clamp connection |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of normally open contacts as main contact | 3 |
| Rated operation current Ie at AC-4, 400 V | 8.5 A |
Searchable Keywords
3RT
AC3
AC4
Contactor
Contactor Circuit
Contactor assemblies
Contactor assembly
Contactor for sepcial Requirements
DB Contactor
DIN EN 60077
Durable
Extended Operating Range
Extended Temperature Range
High Switching Frequency
Inching Mode
Line Contactor
Long Operating Life
Master Contactor
Railway Standard
Reverse
SIRIUS
Safe Switchting
Shock Load Vibration
Special Applications
Switchgear
Switching devices
Traction Contactor
Ulitization Category
contact block
contactor module
contactor switch
load contactor
load switching
motor starting
motor switch
railway application
vibration-resistent
Packaging & Logistics
Minimum Pack Quantity
1
Maximum Pack Quantity
1
Packaging Code
PA
Shipping Weight
0.31 kg
Carton Length
7.35 cm
Carton Width
5 cm
Carton Height
7.75 cm
