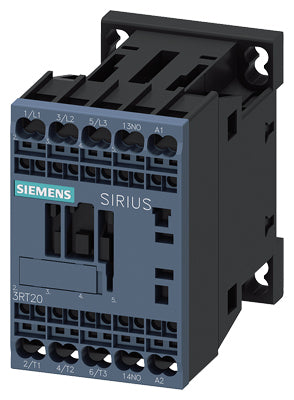

Siemens Power contactor, spring-load terminal, 3-pole, 1NO, 4kW, 400V, 9A
View on Siemens 📄 Datasheet
Siemens

Siemens Power contactor, spring-load terminal, 3-pole, 1NO, 4kW, 400V, 9A Part number 3RT2016-2AF01

EAN / Barcode 4011209827530
Product Type Control Panel
Product Class Power contactor, AC switching
ETIM Class Power contactor, AC switching
Out of Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Power Contactor

The SIRIUS 3RT2 power contactor is designed for reliable motor switching in various applications.

Technical details:

  • Type: AC-3e/AC-3
  • Current: 9 A
  • Power: 4 kW / 400 V
  • Poles: 3-pole
  • Control Voltage: 110 V AC
  • Frequency: 50/60 Hz
  • Auxiliary Contacts: 1 NO
  • Terminal Type: Spring-loaded terminal
  • Size: S00

Customer benefits:

  • Part of the modular SIRIUS system with optimally coordinated products.
  • Compact design with high contact reliability.
  • Factory tested device combinations for assurance.
  • Best connection to the automation level for every application (parallel, via ASi or IO-Link).
  • Integrated auxiliary switches reduce design complexity.
  • Front-panel terminals simplify wiring.
  • Climate-resistant and approved for worldwide use (e.g. IEC and UL/CSA).
  • IE3/IE4-ready.
  • Available with screw or spring-type terminals for various connection needs.
  • Comprehensive range of standardized accessories for all sizes.
  • Available link modules and function modules reduce wiring expense.
  • Simple, efficient, and always up to date with SIRIUS modular system.

Technical Specifications

Depth73 mm
Height70 mm
Modular versionYes
Number of auxiliary contacts as normally open contact1
Number of normally open contacts as main contact3
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz690 V
Rated control supply voltage AC 50 Hz110 V
Rated control supply voltage AC 60 Hz110 V
Rated operation current Ie at AC-1, 400 V22 A
Rated operation current Ie at AC-3, 400 V9 A
Rated operation current Ie at AC-4, 400 V8.5 A
Rated operation power at AC-3, 400 V4 kW
Rated operation power NEMA3.677494 kW
Type of electrical connection of main circuitSpring clamp connection
Voltage type for actuatingAC
Width45 mm
View complete specifications on Siemens
