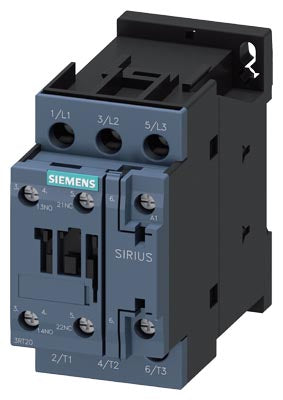

Siemens Power contactor, screw, 3-pole, size S0, 110VAC, 5.5kW
View on Siemens 📄 Datasheet
Siemens

Siemens Power contactor, screw, 3-pole, size S0, 110VAC, 5.5kW Part number 3RT2024-1AF00

EAN / Barcode 4011209831872
Product Type Control Panel
Product Class Power contactor, AC switching
ETIM Class Power contactor, AC switching
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Power Contactor

The SIRIUS 3RT2 power contactor is designed for switching motors with high reliability and performance in a compact design.

Technical details:

  • Type: AC-3e/AC-3
  • Current: 12 A
  • Power: 5.5 kW / 400 V
  • Poles: 3-pole
  • Control Voltage: 110 V AC
  • Frequency: 50 Hz
  • Auxiliary Contacts: 1 NO + 1 NC
  • Connection Type: Screw terminal
  • Size: S0
  • Standards: IEC and UL/CSA approved
  • IE3/IE4-ready

Customer benefits:

  • Part of the modular SIRIUS system with optimally coordinated products
  • High contact reliability with a compact design
  • Wide range of combinations with factory tested device combinations
  • Integrated auxiliary switches reduce design complexity
  • Front-panel terminals simplify wiring
  • Climate-resistant for worldwide use
  • Available in various sizes and performance ranges with AC and DC operation
  • Spring-type terminals for fast, maintenance-free, and vibration-proof connection
  • Comprehensive range of standardized accessories
  • Available link modules and function modules reduce wiring expense

Technical Specifications

Depth97 mm
Height85 mm
Modular versionYes
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Number of normally open contacts as main contact3
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz690 V
Rated control supply voltage AC 50 Hz110 V
Rated operation current Ie at AC-1, 400 V40 A
Rated operation current Ie at AC-3, 400 V12 A
Rated operation current Ie at AC-4, 400 V12.5 A
Rated operation power at AC-3, 400 V5.5 kW
Rated operation power NEMA5.8839904 kW
Type of electrical connection of main circuitScrew connection
Voltage type for actuatingAC
Width45 mm
View complete specifications on Siemens
