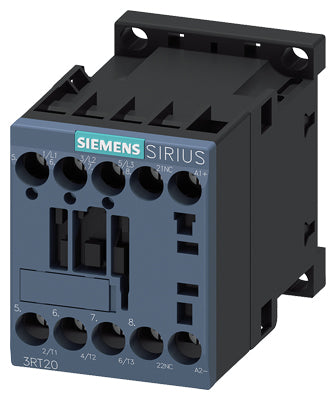

Siemens Power contactor, AC-3e/AC-3, 3-pole, 1NC, 12A, 5.5kW/400V, 24VDC
View on Siemens 📄 Datasheet
Siemens

Siemens Power contactor, AC-3e/AC-3, 3-pole, 1NC, 12A, 5.5kW/400V, 24VDC Part number 3RT2017-1BB42-0CC0

EAN / Barcode 4011209827677
Product Type Control Panel
Product Class Power contactor, AC switching
ETIM Class Power contactor, AC switching
Out of Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Power Contactor

The SIRIUS 3RT2 power contactor is designed for switching motors with high contact reliability in a compact design.

Technical details:

  • Type: power contactor
  • Application: AC-3e/AC-3
  • Rated current: 12 A
  • Rated power: 5.5 kW / 400 V
  • Pole configuration: 3-pole
  • Control voltage: 24 V DC
  • Auxiliary contacts: 1 NC
  • Terminal type: screw terminal
  • Size: S00
  • Communication: communication-capable
  • Climate resistance: approved for worldwide use (e.g. IEC and UL/CSA)
  • IE3/IE4-ready: yes

Customer benefits:

  • High contact reliability with a compact design.
  • Compatible with a variety of components in the load feeder.
  • Integrated auxiliary switches simplify design complexity.
  • Front-panel terminals ease wiring tasks.
  • Various sizes and performance ranges available with AC and DC operation.
  • Screw and spring-type terminals for fast, maintenance-free, and vibration-proof connection.
  • Standardized accessories for all sizes.
  • Link modules and function modules reduce wiring expenses.
  • Part of the modular SIRIUS system for simple and efficient solutions.

Technical Specifications

Depth73 mm
Height58 mm
Modular versionYes
Number of auxiliary contacts as normally closed contact1
Number of normally open contacts as main contact3
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz690 V
Rated control supply voltage DC24 V
Rated operation current Ie at AC-1, 400 V22 A
Rated operation current Ie at AC-3, 400 V12 A
Rated operation current Ie at AC-4, 400 V8.5 A
Rated operation power at AC-3, 400 V5.5 kW
Rated operation power NEMA5.8839904 kW
Type of electrical connection of main circuitScrew connection
Voltage type for actuatingDC
Width45 mm
View complete specifications on Siemens
