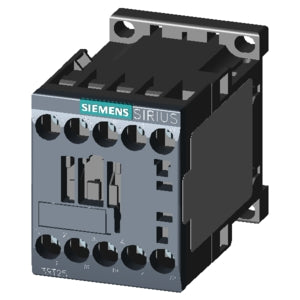

Siemens Power contactor, 4-pole, size S00, 2NO+2NC, 12A, 5.5kW Part number 3RT2517-1AP00

Product Overview

Power contactor, AC-3, 12 A, 5.5 kW / 400 V, 4-pole, 230 V AC, 50/60 Hz, main contacts: 2 NO + 2 NC, screw terminal, size: S00. Article Number: 3RT2517-1AP00.

Key Specifications

Electrical Ratings:

• Current rating: 12 A (AC-3)
• Power rating: 5.5 kW / 400 V
• Control voltage: 230 V AC, 50/60 Hz
• Poles: 4-pole

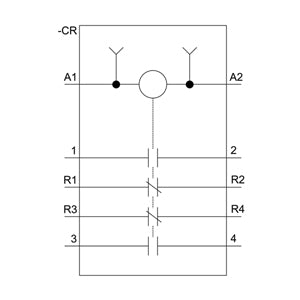

• Main contacts: 2 NO + 2 NC
• Utilization category: AC-3

Construction Features:

• Screw terminal connections
• Frame size: S00 (compact design)
• 4-pole configuration for increased switching capacity

Physical Specifications

• Net weight: 0.232 kg
• Packaging dimensions: 50 × 61.5 × 77.5 mm
• Country of origin: Germany

Product Identifiers

• EAN: 4011209844599
• UPC: 662643916645

Compliance Information

• RoHS compliant since 01.10.2009
• WEEE (2012/19/EU) Take-Back Obligation: Yes

REACH Regulation Information There is currently no information on SVHC (Substances of Very High Concern) from the supply chain and established procedures for screening products for Substances of Very High Concern. Products are regularly compared with information from upstream users regarding substances indicated in the candidate list in accordance with REACH regulation requirements. Information will be updated as new findings become available.

Download existing graphical data for this product:

Product Datasheet

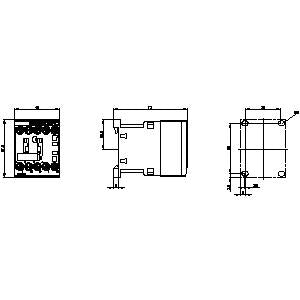

CAD Drawings & Technical Documentation

Certificates
