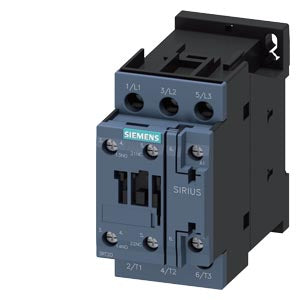

Siemens Power contactor, 3-pole, size S0, 1NO + 1NC, 230VAC, 12A Part number 3RT2024-1AL20

Power Contactor

The SIRIUS 3RT2 power contactor is designed for switching motors with high contact reliability in a compact design.

Technical details:

• AC-3e/AC-3
• 12 A
• 5.5 kW / 400 V
• 3-pole
• 230 V AC
• 50/60 Hz
• Auxiliary contacts: 1 NO + 1 NC
• Screw terminal
• Size: S0
• Climate-resistant
• Approved for worldwide use (e.g. IEC and UL/CSA)
• IE3/IE4-ready
• Available in various sizes and in a wide performance range with AC and DC operation
• Available with spring-type terminals for fast, maintenance-free and vibration-proof connection

Customer benefits:

• Part of the modular SIRIUS system with optimally coordinated products
• Convincing performance from a compact design
• Can be combined with a variety of other components in the load feeder
• Many device combinations have been factory tested
• Best connection to the automation level for every application (parallel, via ASi or IO-Link)
• Integrated auxiliary switches reduce the complexity of your design
• Front-panel terminals simplify the wiring
• Comprehensive range of accessories standardized for all sizes
• Available link modules, function modules, and SIRIUS 3RV29 infeed system considerably reduce wiring expense
• Simple, efficient, and always up to date with the SIRIUS modular system
