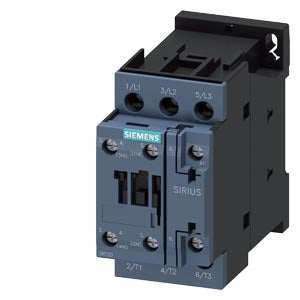

Siemens Power contactor, 3-pole, size S0, 1NO + 1NC, 11kW
View on Siemens 📄 Datasheet
Siemens

Siemens Power contactor, 3-pole, size S0, 1NO + 1NC, 11kW Part number 3RT2026-1AF00

EAN / Barcode 4011209832862
Product Type Control Panel
Product Class Power contactor, AC switching
ETIM Class Power contactor, AC switching
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Power Contactor

The SIRIUS 3RT2 power contactor is designed for switching motors with high contact reliability in a compact size.

Technical details:

  • Type: SIRIUS 3RT2 power contactor
  • Application: AC-3e/AC-3
  • Current: 25 A
  • Power: 11 kW / 400 V
  • Pole: 3-pole
  • Control voltage: 110 V AC
  • Frequency: 50 Hz
  • Auxiliary contacts: 1 NO + 1 NC
  • Terminals: screw terminal
  • Size: S0
  • Climate resistance: approved for worldwide use (e.g. IEC and UL/CSA)
  • Ready for IE3/IE4
  • Available with spring-type terminals

Customer benefits:

  • Convincing performance from a compact design with high contact reliability.
  • Can be combined with a variety of other components in the load feeder.
  • Many device combinations have been factory tested.
  • Best connection to the automation level for every application (parallel, via ASi or IO-Link).
  • Integrated auxiliary switches reduce design complexity.
  • Front-panel terminals simplify wiring.
  • Comprehensive range of standardized accessories for all sizes.
  • Available link modules and function modules reduce wiring expense.
  • Simple, efficient, and always up to date with the SIRIUS modular system.

Technical Specifications

Depth97 mm
Height85 mm
Modular versionYes
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Number of normally open contacts as main contact3
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz690 V
Rated control supply voltage AC 50 Hz110 V
Rated operation current Ie at AC-1, 400 V40 A
Rated operation current Ie at AC-3, 400 V25 A
Rated operation current Ie at AC-4, 400 V15.5 A
Rated operation power at AC-3, 400 V11 kW
Rated operation power NEMA11.032482 kW
Type of electrical connection of main circuitScrew connection
Voltage type for actuatingAC
Width45 mm
View complete specifications on Siemens

Videos & Media

Product Overview

Overview, features and application examples
