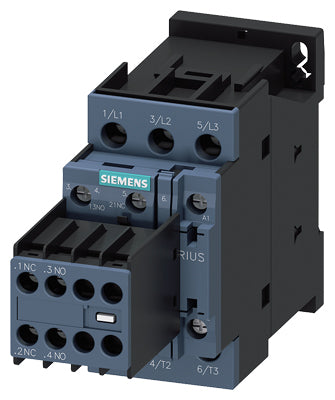

Siemens Power contactor, 3-pole, 2NO +2NC, 230VAC, size S0, 11kW
View on Siemens 📄 Datasheet
Siemens

Siemens Power contactor, 3-pole, 2NO +2NC, 230VAC, size S0, 11kW Part number 3RT2026-1AP04

EAN / Barcode 4011209837478
Product Type Control Panel
Product Class Power contactor, AC switching
ETIM Class Power contactor, AC switching
Out of Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Power Contactor

The SIRIUS 3RT2 power contactor is designed for switching motors with high reliability and compact performance.

Technical details:

  • Type: AC-3e/AC-3
  • Current: 25 A
  • Power: 11 kW / 400 V
  • Poles: 3-pole
  • Control Voltage: 230 V AC
  • Frequency: 50 Hz
  • Auxiliary Contacts: 2 NO + 2 NC
  • Terminal Type: Screw terminal
  • Size: S0
  • Removable Auxiliary Switch: Yes

Customer benefits:

  • Part of the modular SIRIUS system with optimally coordinated products.
  • High contact reliability and a compact design.
  • Can be combined with a variety of other components in the load feeder.
  • Many device combinations have been factory tested.
  • Best connection to the automation level for every application (parallel, via ASi or IO-Link).
  • Integrated auxiliary switches reduce complexity of design.
  • Front-panel terminals simplify wiring.
  • Climate-resistant and approved for worldwide use (e.g. IEC and UL/CSA).
  • IE3/IE4-ready and available in various sizes with wide performance range.
  • Devices available with spring-type terminals for fast, maintenance-free, and vibration-proof connection.
  • Comprehensive range of accessories standardized for all sizes.
  • Available link modules and function modules considerably reduce wiring expense.
  • Simple, efficient, and always up to date - SIRIUS modular system.

Technical Specifications

Depth141 mm
Height85 mm
Modular versionYes
Number of auxiliary contacts as normally closed contact2
Number of auxiliary contacts as normally open contact2
Number of normally open contacts as main contact3
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz690 V
Rated control supply voltage AC 50 Hz230 V
Rated operation current Ie at AC-1, 400 V40 A
Rated operation current Ie at AC-3, 400 V25 A
Rated operation current Ie at AC-4, 400 V15.5 A
Rated operation power at AC-3, 400 V11 kW
Rated operation power NEMA11.032482 kW
Type of electrical connection of main circuitScrew connection
Voltage type for actuatingAC
Width45 mm
View complete specifications on Siemens
