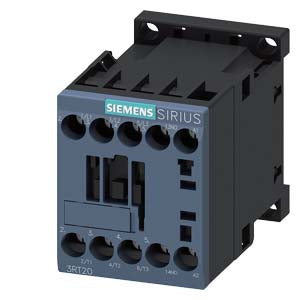

Siemens Power contactor, 3-pole, 1NO, size S00, 5.5kA
View on Siemens 📄 Datasheet
Siemens

Siemens Power contactor, 3-pole, 1NO, size S00, 5.5kA Part number 3RT2017-1AB01

EAN / Barcode 4011209783973
Product Type Control Panel
Product Class Power contactor, AC switching
ETIM Class Power contactor, AC switching
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Power Contactor

The SIRIUS 3RT2 power contactor is designed for switching motors with performance and reliability in a compact design.

Technical details:

  • Type: AC-3e/AC-3
  • Rated current: 12 A
  • Power: 5.5 kW / 400 V
  • Poles: 3-pole
  • Control voltage: 24 V AC
  • Frequency: 50/60 Hz
  • Auxiliary contacts: 1 NO
  • Terminal type: screw terminal
  • Size: S00
  • Compliance: IEC and UL/CSA
  • IE3/IE4-ready

Customer benefits:

  • Optimally coordinated products part of the modular SIRIUS system.
  • High contact reliability in a compact design.
  • Factory tested combinations for assurance in performance.
  • Integration with automation levels for various applications.
  • Integrated auxiliary switches reduce design complexity.
  • Front-panel terminals simplify wiring.
  • Wide performance range with AC and DC operation.
  • Fast, maintenance-free, and vibration-proof connection with spring-type terminals.
  • Standardized accessories for all sizes.
  • Reduced wiring expense with link and function modules.

Technical Specifications

Depth73 mm
Height58 mm
Modular versionYes
Number of auxiliary contacts as normally open contact1
Number of normally open contacts as main contact3
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz690 V
Rated control supply voltage AC 50 Hz24 V
Rated control supply voltage AC 60 Hz24 V
Rated operation current Ie at AC-1, 400 V22 A
Rated operation current Ie at AC-3, 400 V12 A
Rated operation current Ie at AC-4, 400 V8.5 A
Rated operation power at AC-3, 400 V5.5 kW
Rated operation power NEMA5.8839904 kW
Type of electrical connection of main circuitScrew connection
Voltage type for actuatingAC
Width45 mm
View complete specifications on Siemens

Videos & Media

Product Overview

Overview, features and application examples
