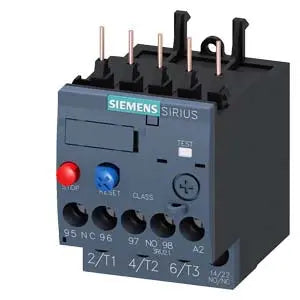

Siemens Overload relay for motor protection, size S00, 1.4-2A Part number 3RU2116-1BB0

EAN / Barcode 4011209781603
Product Type Control Panel
Product Class Thermal overload relay
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD Available

Product Description

Siemens thermal overload relay, 3RU2116-1BB0 is the perfect fit for current-dependent overload protection in the main circuit. The thermal overload relay offers a wide setting range of 1.4-2 A. The SIRIUS overload relay provides an excellent safeguard for motors and systems up to 0.75 kW. The thermal overload relay is designed to effortlessly be inserted into any load feeder due to its optimised size S00 as well as a screw connection. Monitoring relays are used in all areas of electrical switchgear technology.

Technical Specifications

Adjustable current range1.4 A
Adjustable current range2 A
Max. rated operation voltage Ue690 V
Mounting methodDirect attachment
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Release classCLASS 10
Reset function automaticYes
Reset function inputNo
Reset function push-buttonYes
Type of electrical connection of main circuitScrew connection
