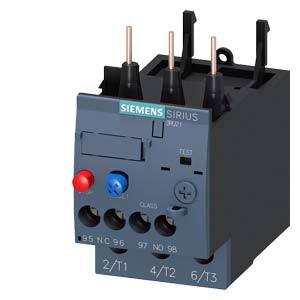

Siemens Overload relay for motor protection, size S0, 2.8-4A Part number 3RU2126-1EB0

Name: Siemens Overload relay for motor protection, size S0, 2.8-4A
Brand: Siemens
SKU: 3RU2126-1EB0

EAN / Barcode 4011209780873

Product Type Control Panel

Product Class Thermal overload relay

ETIM Class Thermal overload relay

Back Order

View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

♻ EPD

Product Description

Overload relay 2.8...4.0 A Thermal For motor protection Size S0, Class 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset thermal overload relay SIRIUS 3RU2 for inverse-time delayed protection of loads with normal starting against excessive temperature rises due to overload or phase failure. This series is particularly flexible and cost-effective. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course.

Can be supplied with different setting ranges of the overload release. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, as well as for stand-alone installation. The accessories consistently fit all sizes from S00 to S3. Simple, efficient and always up to date - SIRIUS modular system.

Technical Specifications

Adjustable current range	4 A
Compliance/Standards	IEC 61508, IEC 60529, IEC 60068-2, IEC 81346-2
country_of_origin	Germany
description	Overload relay 2.8...4.0 A Thermal For motor protection Size S0, Class 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset
IP Rating	IP20
IP Rating Detailed	IP20 touch protection on the front according to IEC 60529 finger
Max. rated operation voltage Ue	690 V
Mounting method	Direct attachment
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Part Depth (mm)	102,00mm
Part Height (mm)	102,00mm
Part Width (mm)	49,00mm
Release class	CLASS 10
Reset function automatic	Yes
Reset function push-button	Yes
Type of electrical connection of main circuit	Screw connection
Weight (g)	0,183 Kg
