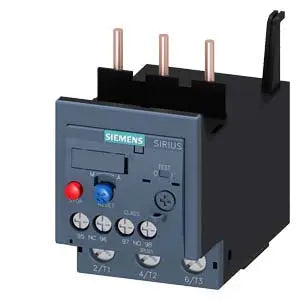

Siemens Overload relay for motor protection, size S2, 40-50A Part number 3RU2136-4HB0
Product Description
Siemens thermal overload relay, 3RU2136-4HB0 is the perfect fit for current-dependent overload protection in the main circuit. The thermal overload relay offers a wide setting range of 40 - 50 A. The SIRIUS overload relay provides an excellent safeguard for motors and systems. The thermal overload relay is designed to effortlessly be inserted due to its optimised size S2 as well as a Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset.
Monitoring relays are used in all areas of electrical switchgear technology.
Technical Specifications
| Adjustable current range | 50 A |
| Compliance/Standards | IEC 61508, IEC 60529, IEC 60068-2, IEC 81346-2 |
| country_of_origin | Germany |
| description | Overload relay 40... 50 A Thermal For motor protection Size S2, Class 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset |
| IP Rating | IP20 |
| IP Rating Detailed | IP20 touch protection on the front according to IEC 60529 finger |
| Max. rated operation voltage Ue | 690 V |
| Mounting method | Direct attachment |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Part Depth (mm) | 111,00mm |
| Part Height (mm) | 96,00mm |
| Part Width (mm) | 61,00mm |
| Release class | CLASS 10 |
| Reset function automatic | Yes |
| Reset function push-button | Yes |
| Type of electrical connection of main circuit | Screw connection |
| Weight (g) | 0,320 Kg |
