Siemens Overload relay for motor protection, size S00, 0.90-1.25A
View on Siemens 📄 Datasheet
Siemens

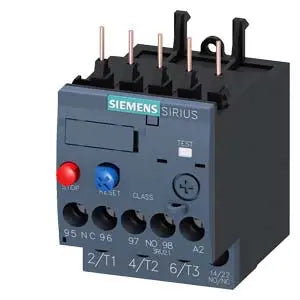

Siemens Overload relay for motor protection, size S00, 0.90-1.25A Part number 3RU2116-0KB0

EAN / Barcode 4011209781580
Product Type Control Panel
Product Class Thermal overload relay
ETIM Class Thermal overload relay
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Overload relay 0.90...1.25 A thermal for motor protection, Size S00, Class 10, contactor mounting, main circuit: screw, auxiliary circuit: screw, manual-automatic-reset. Article Number: 3RU2116-0KB0.

Key Specifications

Electrical Ratings:

  • Current range: 0.90-1.25 A
  • Protection type: Thermal overload protection
  • Application: Motor protection
  • Class: 10
  • Reset function: Manual-Automatic-Reset

Construction Features:

  • Size: S00 (compact design)
  • Mounting: Contactor mounting
  • Main circuit: Screw terminal connections
  • Auxiliary circuit: Screw terminal connections
  • Thermal protection technology

Physical Specifications

  • Net weight: 0.150 kg
  • Packaging dimensions: 49 × 102 × 84 mm
  • Country of origin: Germany

Product Identifiers

  • EAN: 4011209781580
  • UPC: 662643920048

Compliance Information

  • RoHS compliant since 01.10.2009
  • WEEE (2012/19/EU) Take-Back Obligation: Yes

REACH Regulation Information This product contains the following substance from the candidate list in concentrations higher than 0.1% weight by weight (w/w):

  • Lead

Based on currently available information, this substance does not pose any risk if the article is used as intended (including disposal). Please refer to product documentation for additional details.

Download existing graphical data for this product:

Product Datasheet

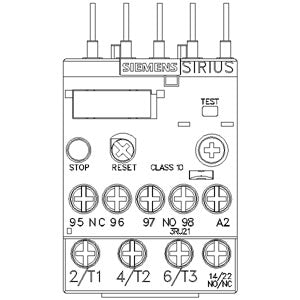

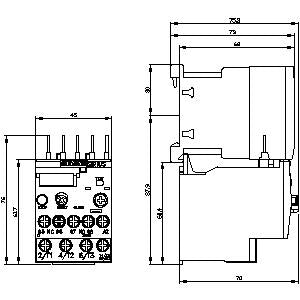

CAD Drawings & Technical Documentation

Certificates

Technical Specifications

Adjustable current range1.25 A
Compliance/StandardsIEC 61508, IEC 60529, IEC 60068-2, IEC 81346-2
country_of_originGermany
descriptionOverload relay 0.90...1.25 A Thermal For motor protection Size S00, Class 10 Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset
IP RatingIP20
IP Rating DetailedIP20 touch protection on the front according to IEC 60529 finger
Max. rated operation voltage Ue690 V
Mounting methodDirect attachment
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Part Depth (mm)84,00mm
Part Height (mm)102,00mm
Part Width (mm)49,00mm
Release classCLASS 10
Reset function automaticYes
Reset function push-buttonYes
Type of electrical connection of main circuitScrew connection
Weight (g)0,150 Kg
View complete specifications on Siemens

Videos & Media

Product Overview

Overview, features and application examples
