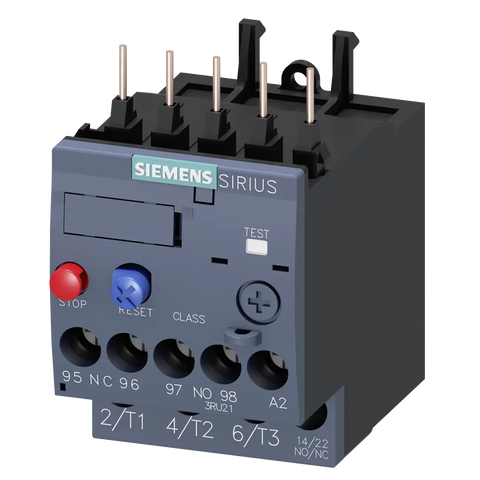

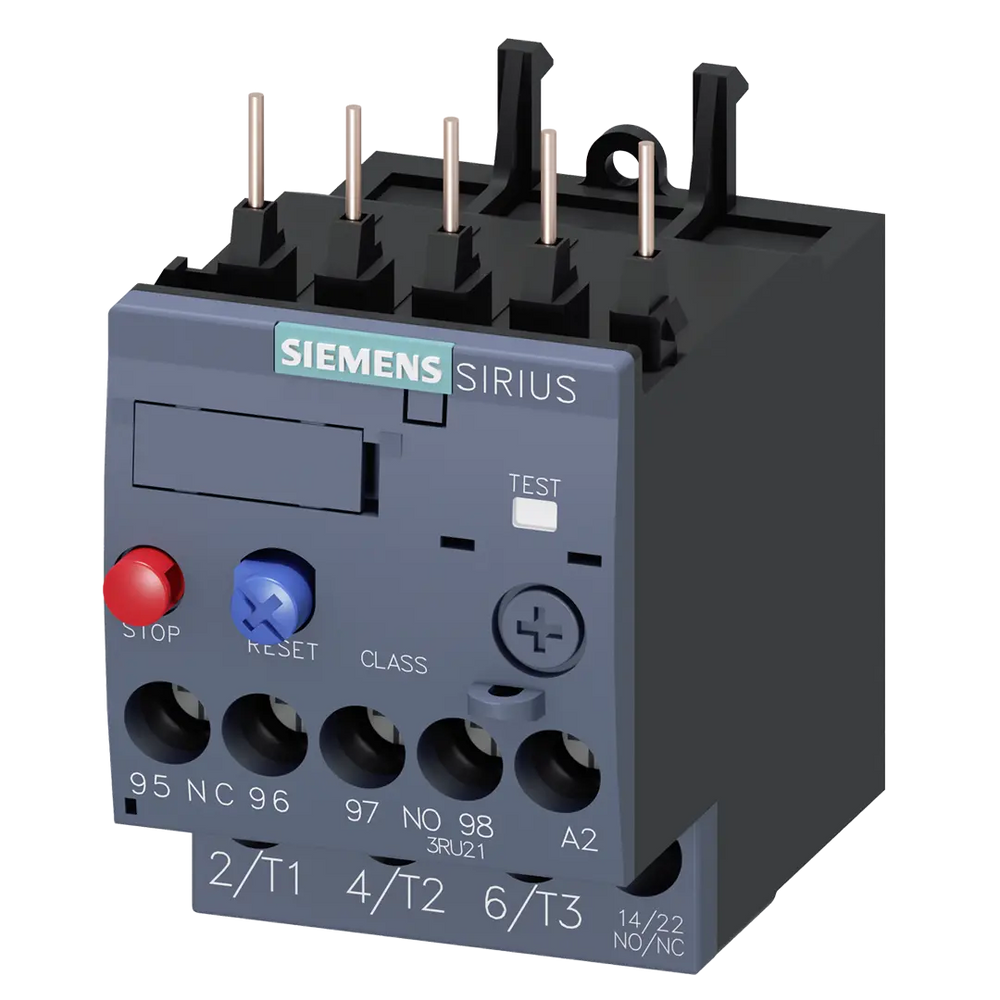

Siemens Overload relay for motor protection, size S00, 0.70-1A Part number 3RU2116-0JB0

Overload relay 0.70...1.0 A thermal for motor protection, Size S00, Class 10, contactor mounting, main circuit: screw, auxiliary circuit: screw, manual-automatic-reset. Article Number: 3RU2116-0JB0.

Key Specifications

Electrical Ratings:

• Current range: 0.70-1.0 A
• Protection type: Thermal overload protection
• Application: Motor protection
• Class: 10
• Reset function: Manual-Automatic-Reset

Construction Features:

• Size: S00 (compact design)
• Mounting: Contactor mounting
• Main circuit: Screw terminal connections
• Auxiliary circuit: Screw terminal connections
• Thermal protection technology

Physical Specifications

• Net weight: 0.154 kg
• Packaging dimensions: 49 × 102 × 84 mm
• Country of origin: Germany

Product Identifiers

• EAN: 4011209781573
• UPC: 662643919998

Compliance Information

• RoHS compliant since 01.10.2009
• WEEE (2012/19/EU) Take-Back Obligation: Yes

REACH Regulation Information This product contains the following substance from the candidate list in concentrations higher than 0.1% weight by weight (w/w):

• Lead

Based on currently available information, this substance does not pose any risk if the article is used as intended (including disposal). Please refer to product documentation for additional details.

Download existing graphical data for this product:

Product Datasheet

CAD Drawings & Technical Documentation

Certificates
