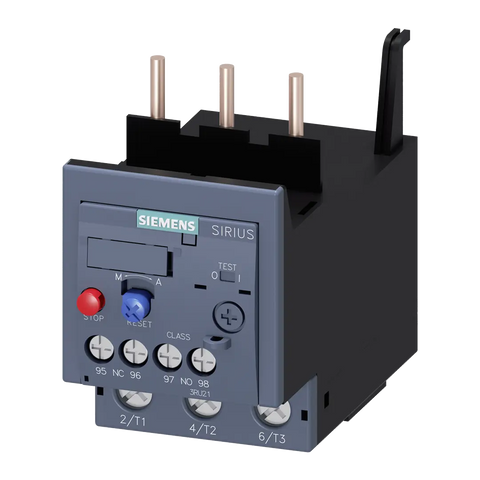

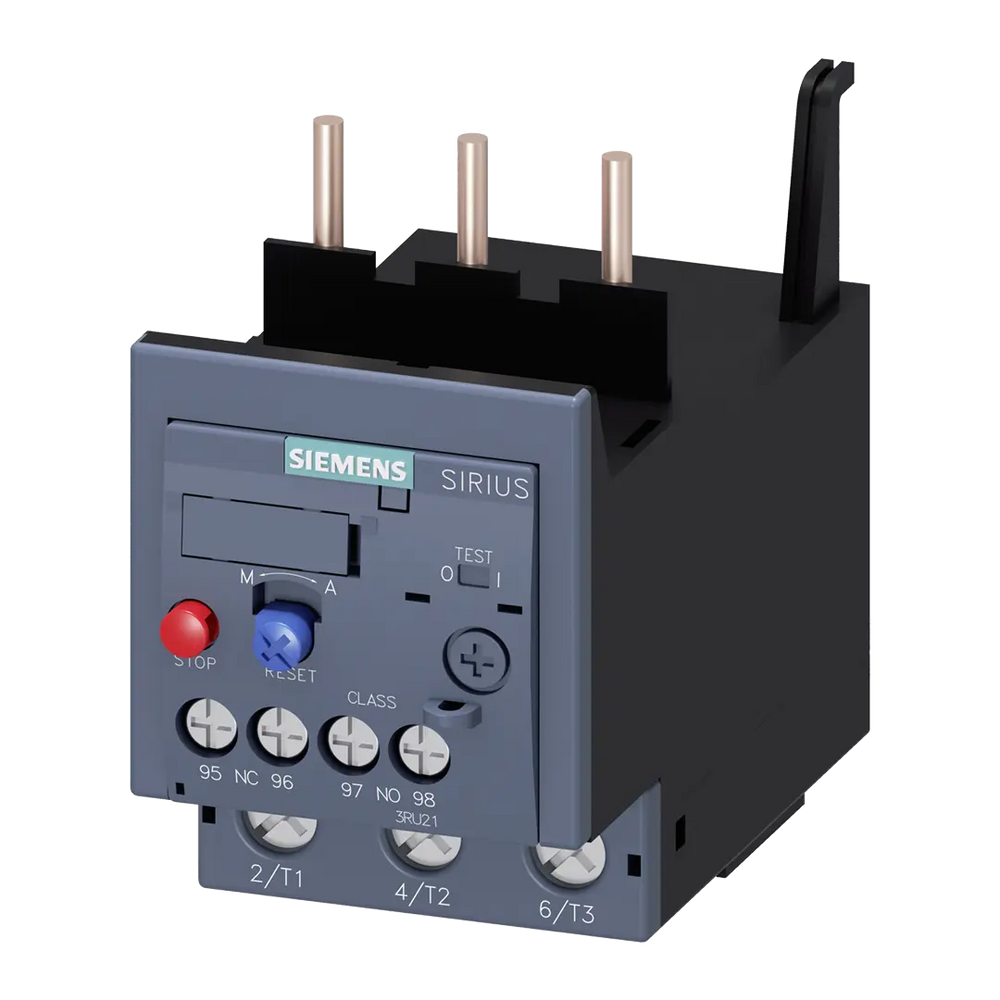

Siemens Overload relay for motor protection, size S2, 28-40A Part number 3RU2136-4FB0

The 3RU2136-4FB0 thermal overload relay is designed for current-dependent protection of three-phase motors and electrical loads against overload, phase asymmetry, and phase failure. This Size S2, Class 10 relay features an adjustable current range of 28 to 40 A and is optimized for direct mounting on Siemens 3RT203 size S2 contactors (3RT2035, 3RT2036, 3RT2037, and 3RT2038) to provide reliable motor protection for high-power industrial applications.

Key Features

• Current Range: 28 to 40 A adjustment range
• Protection Class: Class 10 tripping characteristic for fast response
• Size: S2 for heavy-duty motor applications
• Mounting: Contactor mounting, compatible with 3RT203 size S2 contactors
• Terminal Type: Screw terminals for both main and auxiliary circuits
• Auxiliary Contacts: 1 normally open (NO) + 1 normally closed (NC) contact
• Reset Function: Manual or automatic reset capability
• Phase Loss Protection: Built-in phase loss sensitivity
• Enclosure Rating: IP20 for standard industrial applications
• Operating Temperature: -20°C to +70°C

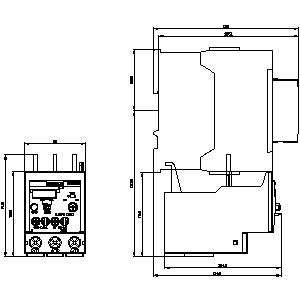

• Dimensions: 105mm H x 55mm W x 117mm D
• Weight: 0.322 kg

Technical Specifications

• Frequency Rating: 50/60 Hz
• Contact Rating: 40A at 690VAC
• Poles: 3-pole configuration
• Tripping Time: Less than 10 seconds at overload conditions
• Compliance: IEC rated, RoHS compliant, meets international standards
• Maximum Operating Voltage: 690V
• Power Rating: 22 kW
• Insulation Voltage: 690V
• Impulse Voltage Resistance: 6 kV
• Power Loss: 8W

Applications The 3RU2136-4FB0 is suitable for protecting motors and electrical loads in heavy-duty industrial applications where reliable overload protection is required for high-power motor systems. It provides inverse time-delayed protection against excessive temperature rises due to overload or phase failure, making it ideal for applications with normal starting conditions, frequency converter operations, and demanding industrial environments requiring Size S2 protection.

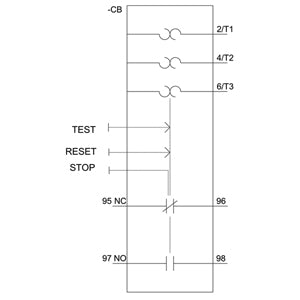

Operation When an overload or phase failure occurs, the motor current rises above the set rated current. This current increase heats up the bimetal strips within the relay via heating elements, causing them to bend and trigger the auxiliary contacts through a tripping mechanism. The auxiliary contacts then switch off the load via a contactor, with the tripped status indicated by a switch position indicator. The relay features both TEST and STOP functions, and allows switching between manual and automatic reset by depressing and rotating the blue RESET button.

Product Information

• Net Weight: 0.322 kg
• Packaging Dimensions: 61.00 x 96.00 x 111.00 mm
• EAN: 4011209916739
• UPC: 887621919566
• Country of Origin: Germany

Compliance & Environmental

• RoHS Compliance: Yes (since 15.10.2014)
• IEC Rating: Yes
• WEEE Take-Back: Yes (2012/19/EU)
• REACH Article 33: Contains lead in concentrations higher than 0.1% w/w
• Export Control: AL: N / ECCN: N
• International Standards: IEC 60947-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, CSA C22.2
