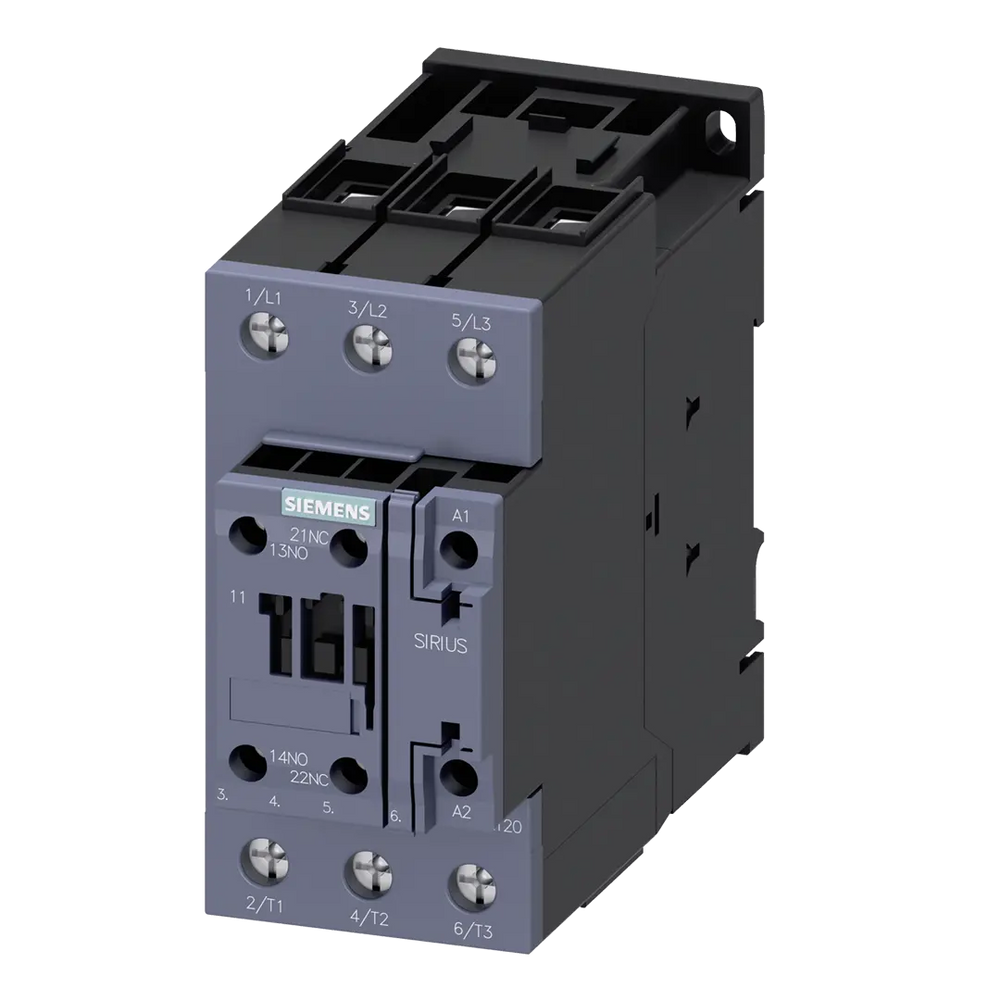

Siemens Power contactor, 3-pole, 230VAC, size S2, 18.5kW Part number 3RT2035-1AP00

EAN / Barcode 4011209939226
Product Type Control Panel
Product Class Power contactor, AC switching
ETIM Class Power contactor, AC switching
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Power Contactor

The SIRIUS 3RT2 power contactor is designed for switching motors with high reliability and compact performance.

Technical details:

  • Type: SIRIUS 3RT2 power contactor
  • Application: AC-3e/AC-3
  • Rated current: 41 A
  • Rated power: 18.5 kW / 400 V
  • Poles: 3-pole
  • Coil voltage: 230 V AC
  • Frequency: 50 Hz
  • Auxiliary contacts: 1 NO + 1 NC
  • Connection type: screw terminal
  • Size: S2

Customer benefits:

  • Part of the modular SIRIUS system with optimally coordinated products.
  • High contact reliability in a compact design.
  • Factory-tested device combinations.
  • Best connection to the automation level for every application (parallel, via ASi or IO-Link).
  • Integrated auxiliary switches reduce design complexity.
  • Front-panel terminals simplify wiring.
  • Climate-resistant and approved for worldwide use (e.g. IEC and UL/CSA).
  • IE3/IE4-ready.
  • Available with spring-type terminals for fast, maintenance-free connection.
  • Comprehensive range of accessories standardized for all sizes.
  • Available link modules, function modules, and SIRIUS 3RV29 infeed system reduce wiring expense.
  • Simple, efficient, and always up to date - SIRIUS modular system.

Technical Specifications

Depth130 mm
Height114 mm
Modular versionYes
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Number of normally open contacts as main contact3
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz690 V
Rated control supply voltage AC 50 Hz230 V
Rated operation current Ie at AC-1, 400 V60 A
Rated operation current Ie at AC-3, 400 V41 A
Rated operation current Ie at AC-4, 400 V35 A
Rated operation power at AC-3, 400 V18.5 kW
Rated operation power NEMA22.064964 kW
Type of electrical connection of main circuitScrew connection
Voltage type for actuatingAC
Width55 mm
Part Width62 mm
Part Height122 mm
Part Depth142 mm
Weight984 g
Country of OriginGermany
