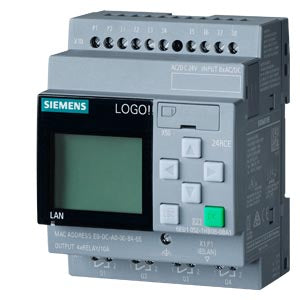

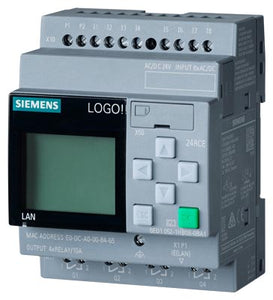

Siemens Logo! 24RCE Logic module, soft comfort V8.3 Siemens
📄 Datasheet
Siemens

Siemens Logo! 24RCE Logic module, soft comfort V8.3 Part number 6ED1052-1HB08-0BA1

EAN / Barcode 4034106033705
Product Type Control Panel
Product Class Logic module
Category HMI's & PLC's
Sub-category Logo
ETIM Class Logic module
Back Order
💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

LOGO! 24RCE, logic module,display power supply/I/O: 24 V 24 V AC/DC/relay, 8 DI/4 DO, memory 400 blocks, modularly expandable, Ethernet, integrated web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.3 or higher, older projects executable cloud connection in all LOGO! 8.3 basic units

Technical Specifications

Basic deviceYes
Degree of protection (IP)IP20
Depth60 mm
ExpandableYes
Front built-in possibleYes
Height90 mm
Number of digital inputs8
Number of digital outputs4
Number of HW-interfaces industrial Ethernet1
Rail mounting possibleYes
Supply voltage AC 50 Hz20.4 V
Supply voltage AC 60 Hz26.4 V
Supply voltage DC20.4 V
Supporting protocol for LONYes
Supporting protocol for TCP/IPYes
Switching current10 A
Voltage type (supply voltage)AC/DC
Wall mounting/direct mountingYes
Width71.5 mm
With displayYes
With relay outputYes
With time switch clockYes
Part Width8 mm
Part Height9 mm
Part Depth7 mm
Weight268 g
Country of OriginChina
