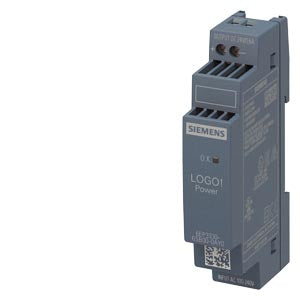

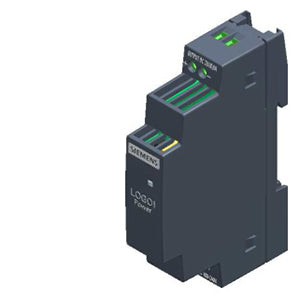

Siemens Logo! Power Stabilized power supply, 24V, 0.6A

Product Overview

The SIMATIC LOGO!POWER 24V/0.6A Stabilized Power Supply delivers reliable DC power conversion with 14.4W output capacity for compact industrial automation and control applications. This active product provides efficient power conversion from universal AC input to regulated 24V DC output, featuring wide input voltage range compatibility and excellent efficiency across the entire load spectrum. Enhanced with compact LOGO!8 module design for space-efficient installation and optimal performance in diverse industrial environments.

Key Features

• Universal Input Range: 100-240V AC single-phase input for global application compatibility
• Regulated 24V DC Output: Stable 0.6A current delivery for reliable system operation
• High Efficiency Design: Excellent efficiency across full load range with minimal no-load losses
• Compact LOGO! Design: Space-efficient form factor matching LOGO!8 module dimensions
• Wide Input Tolerance: Supports both AC and DC input networks for versatile applications
• Capacitive Load Reserve: Enhanced power reserve for switching capacitive loads
• DIN Rail Mounting: Standard DIN rail installation for industrial cabinet integration
• Active Product Status: Current production with full technical support and availability

Technical Specifications

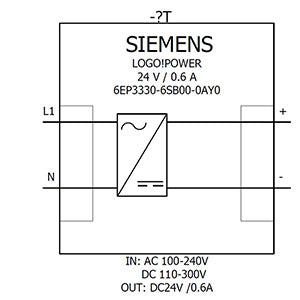

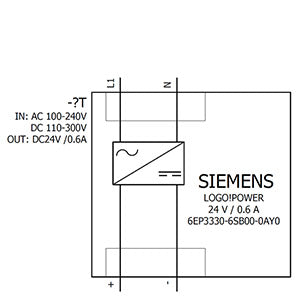

• Input Voltage: 100-240V AC, 1 phase | Output Voltage: 24V DC regulated
• Output Current: 0.6A maximum | Power Output: 14.4W
• Protection Class: IP20 | Weight: 0.070 kg

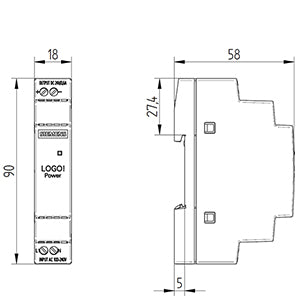

• Mounting: DIN rail mounting | Dimensions: 6.70 x 9.60 x 3.60 cm
• Operating Temperature: Standard industrial range | Short-Circuit Protection: Yes
• Efficiency: High efficiency across load range | Input Type: AC/DC universal
• Output Adjustment: Non-adjustable 24V nominal | Load Regulation: Stabilized output

Applications & Integration

Primary Applications:

• Industrial control system power supply for 24V DC circuits
• LOGO! programmable logic controller power supply
• Sensor and actuator power distribution in automation systems
• Field device power supply in distributed control applications

System Compatibility:

• Compatible with SIMATIC LOGO! controller families
• Integration with 24V DC industrial control systems
• Universal input for global installation requirements
• Suitable for various industrial automation environments

Quality & Compliance

• Status: PM300 Active Product | Origin: Austria
• EAN: 4025515154877 | UPC: 804766486067
• RoHS Compliant: Since 01.07.2006 | WEEE: Take-back obligation applies
• REACH: Contains lead above 0.1% w/w (safe when used as intended)
• Export Control: AL: N / ECCN: N
• Product Class: A - Standard stock item with return capability

Package Contents

• 1 × LOGO!POWER 24V/0.6A Power Supply Module, technical documentation, installation accessories

Download existing graphical data for this product:

• Product Information Page
• Data Sheet
• Official Support Documentation
• LOGO!POWER Manual
• Technical Support Forum
