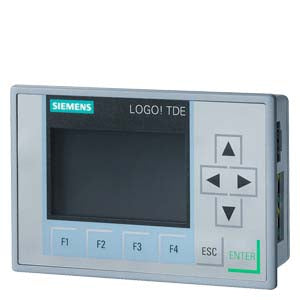

Siemens Logo! TD text display, 6-line, 2 ethernet ports Part number 6ED1055-4MH08-0BA1

Product Overview

The Siemens LOGO! TD text display, article number 6ED1055-4MH08-0BA1, is a compact operator display designed for use with Siemens LOGO! 8 logic modules. It provides a six-line text display for showing machine states, messages, alarms, and user prompts, enabling clear communication between the automation system and the operator. The unit features two integrated Ethernet ports for network communication and flexible system integration in small automation and building control applications.

Key Features

• Text display for Siemens LOGO! automation systems
• Six-line LCD for status messages and operator interaction
• Two integrated Ethernet communication ports
• Three selectable background colours
• FSTN LCD with LED backlight
• Panel-mountable design
• Installation accessories included
• Designed for use with LOGO! 8 logic modules

Technical Specifications

• Article Number: 6ED1055-4MH08-0BA1
• Product Type: LOGO! TD text display
• Display Type: FSTN LCD with LED backlight
• Number of Display Lines: 6
• Background Colours: 3 selectable colours
• Communication Interfaces: Ethernet
• Ethernet Ports: 2
• Mounting: Panel mounting
• System Compatibility: Siemens LOGO! 8

Compliance & Standards

• Designed for Siemens LOGO! automation platforms
• Manufactured to Siemens industrial HMI standards
• Suitable for use in control panels and machine interfaces
• Complies with industrial electrical and EMC requirements

Applications

The Siemens 6ED1055-4MH08-0BA1 LOGO! TD text display is used as an operator interface for LOGO! control systems. It allows operators to view process data, alarm messages, and system status information in applications such as building automation, lighting control, pump systems, small machines, and general automation panels.
