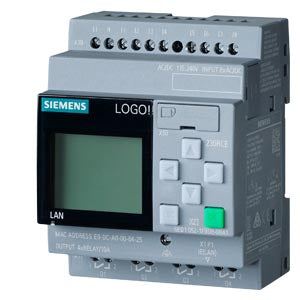

Siemens Logo! 230RCE Logic module, soft comfort V8.3

Product Overview

SPARE PART ONLY - The LOGO! 230RCE logic module was a comprehensive programmable logic controller designed for high-voltage industrial automation applications. This module featured an integrated display, 230V AC/DC operation, Ethernet connectivity, and web server capabilities with support for LOGO! Soft Comfort V8.3. This product is available only as a spare part for existing installations.

Product Status

• End Date: March 7, 2024
• Availability: Spare part only for existing installations
• Successor Product: 6ED1052-1FB08-0BA2 (LOGO! 8.4 series with MQTT support)
• Software Compatibility: LOGO! Soft Comfort V8.3 or higher

Key Features (Historical)

• High-Voltage Operation: 115V/230V AC power supply with relay outputs for industrial applications
• Integrated Display: 6-line display with backlight for local monitoring and control
• Ethernet Connectivity: Built-in Ethernet interface for programming, monitoring, and network communication
• Web Server: Integrated web server for remote monitoring via smartphones, tablets, or PCs
• Expandable I/O: 8 digital inputs and 4 relay outputs with modular expansion capability
• Memory Capacity: 400 function blocks for complex automation programs

Technical Specifications

• Power Supply: 115V/230V AC (wide input tolerance)
• Digital Inputs: 8 inputs (115V/230V AC compatible)
• Digital Outputs: 4 relay outputs with high switching capacity
• Memory: 400 programmable function blocks
• Display: 6-line LCD with configurable backlight
• Communication: Ethernet 10/100 Mbps with integrated web server
• Expansion: Modular expansion capability with LOGO! expansion modules
• Operating Temperature: 0°C to +55°C
• Installation Width: 72 mm (4 TE modules)
• Net Weight: 0.274 kg
• Country of Origin: China
• EAN: 4034106033644
• UPC: 195125091542

System Integration & Connectivity

• Programming Software: LOGO! Soft Comfort V8.3 or higher
• Web Server Features: User-defined web pages, data logging, real-time monitoring
• Network Communication: Ethernet TCP/IP for SIMATIC integration
• Data Storage: Standard microSD card support for program storage and data logging
• Cloud Connectivity: Cloud connection capabilities for remote access
• Legacy Project Support: Older LOGO! projects executable with compatibility mode

High-Voltage Applications

• 230V AC Systems: Direct connection to high-voltage control circuits and loads
• Motor Control: Suitable for motor starters, contactors, and high-power switching
• Industrial Equipment: Control of 230V industrial machinery and equipment
• Building Automation: High-voltage lighting control, HVAC systems, and power distribution
• Safety Considerations: Designed for qualified personnel installation and maintenance

Programming & Configuration

• Drag-and-Drop Programming: User-friendly LOGO! Soft Comfort development environment
• Function Block Library: Comprehensive library of pre-tested automation functions
• Simulation Environment: Integrated simulator for program testing before deployment
• Real-Time Clock: Built-in RTC with backup for time-based control functions
• Data Logging: Support for up to 20,000 data records with microSD storage

Migration Information

• Current Replacement: 6ED1052-1FB08-0BA2 (LOGO! 8.4 series)
• Enhanced Features: Successor includes MQTT communication and improved cloud connectivity
• Project Compatibility: Existing V8.3 projects compatible with V8.4 successor
• Migration Path: Upgrade to LOGO! 8.4 series for continued support and new features

Compliance & Safety

• RoHS Compliance: Compliant since September 30, 2020
• Export Control: AL: N / ECCN: 9N9999
• WEEE Compliance: Subject to WEEE take-back obligations
• REACH Information: Contains lead, lead monoxide, and 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol in concentrations >0.1% w/w (safe when used as intended)
• High-Voltage Warning: Qualified personnel required for 230V installation and maintenance

Web Server & Remote Access

• Remote Monitoring: Real-time monitoring of inputs, outputs, and system status
• Custom Web Pages: User-defined web pages for specific applications
• Multi-Device Access: Compatible with smartphones, tablets, and computers
• Data Visualization: Graphical representation of process data and trends
• Secure Access: Password-protected access for authorized personnel

Installation & Safety Considerations

• Qualified Personnel: 230V AC systems require qualified electrical personnel
• Safety Precautions: Proper electrical safety procedures must be followed
• Electrical Codes: Installation must comply with local electrical codes and regulations
• Circuit Protection: Appropriate fuses and circuit breakers required
• Environmental: Indoor installation in control cabinets with proper ventilation
