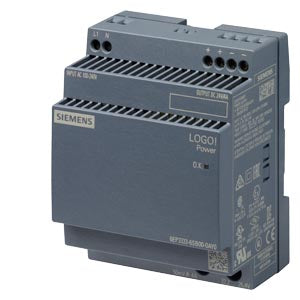

Siemens Stabilized power supply input, 24VDC, 4A
📄 Datasheet
Siemens

Siemens Stabilized power supply input, 24VDC, 4A Part number 6EP3333-6SB00-0AY0

EAN / Barcode 4025515154860
Product Type Control Panel
ETIM Class DC-power supply
Back Order
💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD🌱 EcoTech Profile

Product Description

LOGO!POWER 24 V / 4 A stabilized power supply input: 100-240 V AC output: 24 V DC / 4 A The new miniature LOGO!Power power supply units in the same design as the LOGO!8 logic modules offer great performance in the smallest space. The improved efficiency across the entire load range and the low power loss in no-load operation ensure efficient operation. The wide-range input for 1-phase networks and for direct voltage networks as well as the power reserve for switching on capacitive loads meet the requirements of numerous applications. The large temperature range and comprehensive certifications make the units suitable for universal use. These reliable power supplies with their flat, stepped profile can be used extremely flexibly, for example, in distribution boards. Regardless of the industry or requirement: Siemens offers reliable and efficient power supplies for any plant.

Technical Specifications

1st secondary output voltage24 V
Built-in height130 mm
Built-in width72 mm
Degree of protection (IP)IP20
Depth53 mm
Direct mounting possibleYes
Height90 mm
Max. output current 14 A
Modular versionYes
Nominal value output current 14 A
Nominal value output voltage 124 V
Output voltage stabilizedYes
Power output96 W
Rail mounting possibleYes
Rated supply voltage AC 50 Hz240 V
Rated supply voltage AC 60 Hz100 V
Secondary voltage adjustableYes
Short-circuit-proofYes
StabilizedYes
Type of electric connectionScrew connection
Voltage type (supply voltage)AC/DC
Wall mounting possibleYes
Width72 mm
