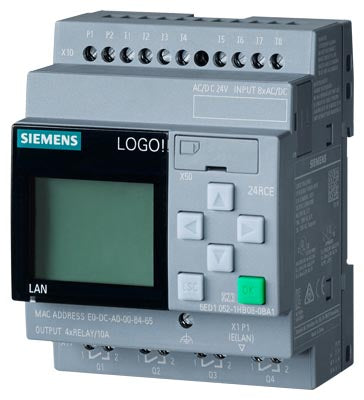

Siemens Logo 24RCE Logic module, soft comfort, V8.3, 24VADC Part number 6ED1052-1HB08-0BA2

Product Overview

The Siemens 6ED1052-1HB08-0BA2 is a compact programmable logic module from the LOGO! 8 series (LOGO! 24RCE variant). It features 8 digital inputs (four of which can operate as analogue inputs), 4 relay outputs, an integrated display, Ethernet connectivity, a built-in web server, and support for up to 400 function blocks. This module is designed for small-scale automation, building control, machine control and remote monitoring applications.

Key Features

• Programmable logic module – LOGO! 8 series
• 8 digital inputs (including up to 4 analogue input capability)
• 4 relay outputs (capable of switching resistive and inductive loads)
• On-board display for local operation and diagnostics
• Ethernet interface and integrated web server for remote access and monitoring
• Expandable with extension modules and supports up to 400 programming blocks
• Wide supply voltage range: 24 V AC/DC

Technical Specifications

• Article Number: 6ED1052-1HB08-0BA2
• Series / Type: LOGO! 24RCE (LOGO! 8 modular logic module)
• Supply Voltage: 24 V AC / 24 V DC
• Digital Inputs: 8
• Analogue-Capable Inputs: Up to 4 of the 8 inputs in analogue mode
• Relay Outputs: 4
• Programming Blocks: Up to 400 function blocks
• Mounting: DIN-rail mounting (35 mm rail)
• Width / Module Size: Approx. 4 spacing units
• Typical Weight: ~0.268 kg

Compliance & Certifications

• Designed to meet IEC/EN standards for logic controllers and modules
• RoHS compliant and carries CE marking
• Supports remote diagnostics and integration via Ethernet/web server

Applications

The 6ED1052-1HB08-0BA2 is ideal for use in compact automation tasks such as building automation (lighting, HVAC control), small machine controls, panel-mounted modular systems, remote I/O control, and OEM machine integration. Its integrated display and web connectivity make it particularly convenient for installations requiring both local operator interface and networked monitoring/control.
