Product Overview

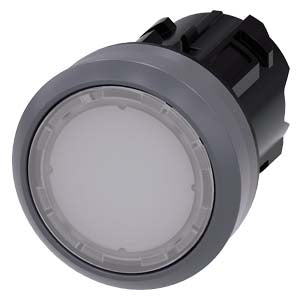

The SIRIUS ACT 3SU1031-0AB60-0AA0 is a premium 22 mm round illuminated pushbutton designed for industrial control applications requiring reliable momentary switching and visual status indication. This white, plastic with metal front ring pushbutton combines robust construction with flat momentary contact functionality for demanding industrial environments requiring both precise control activation and illumination indication.

Key Features Design & Construction:

• 22 mm round mounting diameter with pushbutton design
• High-grade plastic construction with metal front ring for enhanced durability
• White plastic actuator with flat profile design
• Illuminated function with momentary switching capability
• Snap-on mounting system without tools required
• Durable construction for industrial switching applications

Switching Function:

• Momentary Contact Type: Spring-return pushbutton operation
• Flat Actuator: Low-profile design for comfortable operation
• Illuminated Design: Integrated illumination capability for status indication
• Momentary Operation: Automatically returns to default position when released
• Metal Front Ring: Enhanced mechanical protection and professional appearance

Technical Specifications:

• Protection Rating: IP66, IP67, IP69K (front face)
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +80°C
• Mounting Hole Diameter: 22.3 mm
• Actuator Type: Flat white plastic with metal front ring
• Operation Type: Momentary contact (spring-return)
• Illumination: Compatible with LED modules
• Mechanical Life: Extended switching cycle life
• Vibration Resistance: 10-500 Hz, 5g (IEC 60068-2-6)

Certifications & Standards:

• UL, CSA, CE marked
• IEC 60947-5-1 compliant
• RoHS compliant since 01.10.2014
• REACH regulation compliant

Applications Ideal for use in:

• Start/stop control applications with visual confirmation
• Equipment activation and control with status indication
• Process control systems requiring momentary operation
• Control panels with illuminated pushbutton functions
• Manufacturing equipment start/acknowledge operations
• Safety systems requiring positive action confirmation
• Machine control stations with visual feedback
• Industrial control applications requiring momentary activation

Pushbutton Features

• Illuminated Operation: Combines switching control with visual status indication
• Momentary Action: Spring-return ensures safe default state
• Visual Feedback: Illuminated design provides clear operational status
• Ergonomic Design: Flat actuator profile for comfortable operation
• Enhanced Durability: Metal front ring provides additional mechanical protection
• Reliable Switching: Industrial-grade contacts for dependable operation
• Safety Operation: Automatic return to default position prevents unintended operation

Mounting & Installation

• Front Panel Mounting: Suitable for panel thicknesses up to 8 mm
• Tool-Free Installation: Snap-on holder system
• Contact Blocks: Compatible with 3SU14 series contact blocks
• LED Modules: Compatible with 3SU14 series LED modules for illumination
• Modular Design: Supports integration with control system architectures
• Easy Maintenance: Accessible components for service and replacement

Series Compatibility Part of the comprehensive SIRIUS ACT 3SU1 command and signaling device family, ensuring:

• Consistent design language across installations
• Interchangeable components and modules
• Extensive accessory ecosystem
• Global availability and support

Technical Documentation:

• Net Weight: 0.023 kg
• Country of Origin: China
• EAN: 4011209973619
• UPC: 804766066078
• Package Dimensions: 55 x 110 x 20 mm

Download existing graphical data for this product: Technical Documentation:

• Official Technical Datasheet (PDF)
• Product Support Page
• SIRIUS ACT System Manual

CAD Data & Drawings:

• 3D CAD Models - Multiple Formats
• 2D Dimension Drawings
• EPLAN Macros

Configuration Tools:

• SIRIUS ACT Online Configurator
• Product Selection Tool

Additional Resources:

• Installation Instructions
• Wiring Diagrams
• Contact Block Compatibility Guide
• LED Module Compatibility Guide
• Compatibility Matrix
