Siemens Electronics module for ET 200S, 8 DO, 24VDC, 0.5A Part number 6ES7132-4BF00-0AA0

The ET 200S Electronics Module 8 DO 24V DC/0.5A delivers reliable digital output control with 8 channels of 24V DC/0.5A capacity for legacy industrial automation systems. Featuring compact 15mm width design and standard functionality, this module provides cost-effective digital output control for actuators, indicators, and other industrial loads within the proven ET 200S distributed I/O system. Designed for applications requiring proven reliability and long-term spare parts availability.

Important Notice: This product is cancelled (PM410: Product cancellation since 01.10.2023) and is only available for service and maintenance purposes as a spare part. For new installations, please consider the ET 200SP system.

Key Features

• 8-Channel Digital Output: 24V DC transistor outputs with 0.5A per channel capacity for standard industrial loads
• Compact 15mm Width: Space-efficient design optimized for dense cabinet installations in ET 200S configurations
• Standard Functionality: Proven reliability with screw/spring-loaded terminal connections for robust field wiring
• Short-Circuit Protection: Integrated protection for all output channels with 2.8-5.2A response threshold
• Fast Switching: Response time of 0.3-0.6ms for signal changes enabling rapid control applications
• IP20 Protection: Industrial-grade protection suitable for control cabinet installation environments
• Hot-Swappable: Module replacement during operation without affecting system functionality

Technical Specifications

• Output Configuration: 8 digital outputs | Output Voltage: 24V DC
• Output Current: 0.5A per channel (transistor) | Weight: 0.044 kg
• Supply Voltage: 20.4-28.8V DC | Protection Rating: IP20
• Response Time: 0.3-0.6ms signal change delay | Connection Type: Screw/spring-loaded terminals

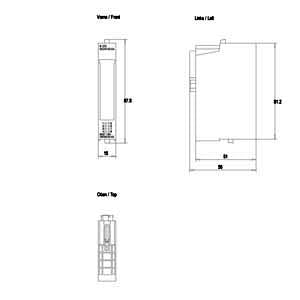

• Dimensions: 81mm H x 15mm W x 52mm D | Operating Temperature: 0-60°C
• Package Dimensions: 6.00 x 9.10 x 2.20 cm | ATEX Rating: Cat. 3G (gas explosion protection)

Applications & Integration

Primary Applications:

• Legacy ET 200S system maintenance and spare parts replacement
• Industrial automation retrofit projects requiring 8-channel digital output control
• Actuator and indicator control in process automation systems
• Solenoid valve and pneumatic system control applications

System Compatibility:

• Compatible with SIMATIC ET 200S distributed I/O system
• PROFIBUS DP communication protocol support
• Integration with SIMATIC S7 controllers and ET 200S interface modules
• Expandable up to 64 I/O modules per ET 200S station
• Hot-swappable operation for enhanced system availability

Quality & Compliance

• Status: Cancelled Product (PM410) - Spare Part Only | Origin: China
• EAN: 4025515074670 | UPC: 662643216585
• RoHS Compliant: Since 31.12.2008 | WEEE: Take-back obligation applicable
• REACH: Contains lead monoxide (lead oxide) above 0.1% w/w (safe when used as intended)
• Export Control: AL: N / ECCN: N

Package Contents

• 1 × ET 200S Electronics Module 8 DO 24V DC/0.5A, technical documentation, installation accessories
