Siemens Electronics module, 8 x 24VDC

Product Overview

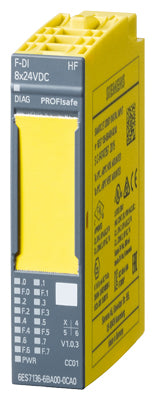

SIMATIC DP electronics module for ET 200SP featuring 8 fail-safe digital inputs (F-DI) with 24V DC operation in High Feature (HF) configuration and ultra-compact 15mm width design. This safety-certified module meets the highest safety standards up to Performance Level E (PL E) according to ISO 13849-1 and Safety Integrity Level 3 (SIL3) according to IEC 61508, providing reliable fail-safe input monitoring for critical safety applications with comprehensive diagnostic capabilities.

Important Product Status Notice

• Successor Model: 6ES7136-6BA01-0CA0 with equivalent functionality and enhanced features

Key Features & Specifications

• Safety-Certified Inputs: 8 fail-safe digital inputs (F-DI) with 24V DC operation in High Feature configuration
• Compact Design: Ultra-compact 15mm width for space-efficient installation in distributed safety systems
• Safety Standards: Up to PL E (ISO 13849-1) and SIL3 (IEC 61508) certified for critical safety applications
• High Feature Configuration: Enhanced diagnostic capabilities with parameterizable input delay and comprehensive safety monitoring
• Hot-Swappable: Module replacement during maintenance without safety system shutdown
• Advanced Diagnostics: Individual channel monitoring with LED status indicators, I&M0 to I&M3 support, and detailed error reporting

Technical Specifications

• Article Number: 6ES7136-6BA00-0CA0
• Configuration: F-DI 8x24V DC HF fail-safe digital input module
• Dimensions: 15mm width, 0.061 kg weight
• Packaging: 6.90 x 7.50 x 3.20 cm, EAN: 4025515082743
• System Compatibility: SIMATIC ET 200SP distributed I/O system with safety controllers and PROFIsafe communication
• Country of Origin: Germany

Applications & Safety Functions

• Safety-Critical Input Monitoring: Emergency stop button monitoring, safety door position detection, light curtain status monitoring, pressure-sensitive mat integration
• Control Systems: Two-hand control systems, safety switch monitoring, hazardous area input monitoring, and robotic safety fence monitoring
• Safety Processing: Dual channel safety input processing with redundant safety channels, wire break detection, short circuit monitoring, and cross-fault detection for maximum reliability

Advanced Integration & Configuration

• Safety Controller Integration: Seamless integration with SIMATIC safety controllers through PROFIsafe communication protocol
• Engineering Tools: Configured via TIA Portal safety engineering tools (V12.0+) and STEP 7 (V5.5 SP3+)
• High Feature Configuration: Parameterizable input delay (0.4ms signal exchange time), enhanced diagnostic coverage, comprehensive safety diagnostics
• Maintenance Support: I&M data support for preventive maintenance and troubleshooting

Compliance & Environmental

• Export Control: AL: N / ECCN: EAR99H
• RoHS Compliance: Since 08.08.2013
• WEEE Take-Back: Applicable
• Product Class: A - Standard stock item, returnable within guidelines
• ATEX Certification: Gas-Ex-Protection Category 3G certified

REACH Regulation Information

• Regulated Substances: Contains substances from the candidate list in concentrations higher than 0.1% w/w: Lead, Lead monoxide (lead oxide), and 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one
• Risk Assessment: These substances do not pose risks when used as intended, including disposal
• Documentation: Refer to product documentation for additional details

Download existing graphical data for this product:

• Product Datasheet
• F-DI 8x24VDC HF Manual
• Product Support Page
