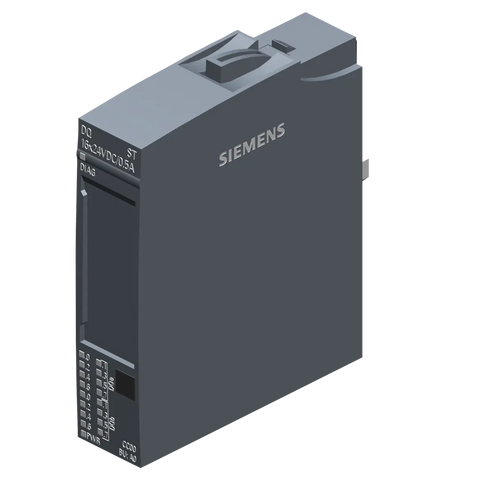

Siemens Digital output module, standard, DQ 16x 24VDC, 0.5A

Product Overview

SIMATIC ET 200SP Digital output module featuring 16 channels with 24V DC/0.5A Standard rating and source output configuration (PNP, P-switching). This high-density module provides comprehensive diagnostics including short-circuit detection, wire break monitoring, and supply voltage surveillance with substitute value output capability.

Key Features

• 16 digital output channels in compact design
• 24V DC operation with 0.5A per channel
• Source output configuration (PNP, P-switching)
• Comprehensive module diagnostics
• Short-circuit detection to L+ and ground
• Wire break monitoring
• Supply voltage monitoring
• Substitute value output functionality
• Fits BU-type A0 interface modules
• Colour Code CC00 for easy identification

Technical Specifications

• Article Number: 6ES7132-6BH01-0BA0
• Module Type: Digital output module
• Number of Channels: 16
• Output Type: Source output (PNP, P-switching)
• Voltage Rating: 24V DC
• Current Rating: 0.5A per channel
• Interface Compatibility: BU-type A0
• Colour Code: CC00
• Net Weight: 0.036 kg
• Packaging Dimensions: 6.70 x 7.50 x 2.40 cm
• Country of Origin: Germany
• EAN: 4047623408574
• UPC: 804766529047

Diagnostic Features

• Short-circuit detection to L+ and ground
• Wire break detection
• Supply voltage monitoring
• Substitute value output for safe operation during faults
• Comprehensive module status reporting

Compliance & Safety

• RoHS compliant since 15.09.2017
• WEEE (2012/19/EU) Take-Back Obligation: Yes
• Export Control: AL: N / ECCN: 9N9999

• Standard product classification with return guidelines applicable

Applications Perfect for high-density digital output applications in industrial automation systems. Ideal for controlling solenoid valves, indicator lights, motor starters, and other 24V DC loads. The source output configuration makes it suitable for PNP sensor interfaces and positive logic control systems.

Important Notes

• Compatible with ET 200SP distributed I/O system
• Requires appropriate BU-type A0 interface modules
• Source output (PNP) configuration for positive switching
• Comprehensive diagnostics ensure reliable operation
• Substitute value output provides safe fallback during system faults

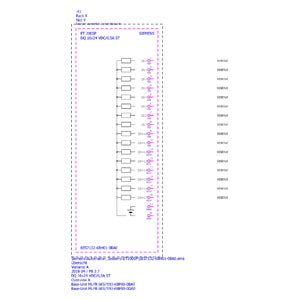

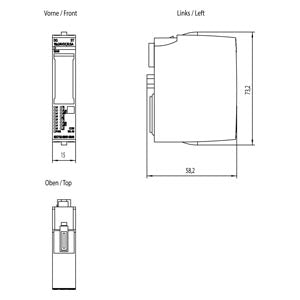

Download existing graphical data for this product:

• Product Datasheet
• ET 200SP DQ 16x24VDC/0.5A ST Manual
• ET 200SP System Manual
• ET 200SP Manual Collection
• ET 200SP Documentation Overview
• ET 200SP Product Information
• Technical Support Forum
