Siemens Digital output module, standard, 8DQ x 24VDC, 0.5A

Product Overview

SIMATIC ET 200SP Digital output module featuring 8 channels with 24V DC/0.5A Standard rating and source output configuration (PNP, P-switching). This compact module provides comprehensive diagnostics including short-circuit detection, wire break monitoring, and supply voltage surveillance with substitute value output capability.

Key Features

• 8 digital output channels in compact design
• 24V DC operation with 0.5A per channel
• Source output configuration (PNP, P-switching)
• Comprehensive module diagnostics
• Short-circuit detection to L+ and ground
• Wire break monitoring
• Supply voltage monitoring
• Substitute value output functionality
• Fits BU-type A0 interface modules
• Colour Code CC02 for easy identification

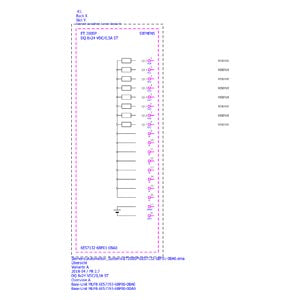

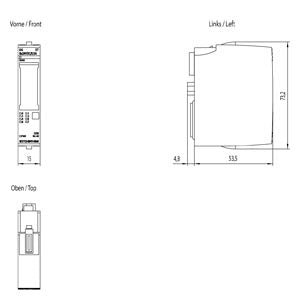

Technical Specifications

• Article Number: 6ES7132-6BF01-0BA0
• Module Type: Digital output module
• Number of Channels: 8
• Output Type: Source output (PNP, P-switching)
• Voltage Rating: 24V DC
• Current Rating: 0.5A per channel
• Interface Compatibility: BU-type A0
• Colour Code: CC02
• Net Weight: 0.035 kg
• Packaging Dimensions: 6.80 x 7.80 x 2.40 cm
• Country of Origin: Germany
• EAN: 4047623408703
• UPC: 804766529023

Diagnostic Features

• Short-circuit detection to L+ and ground
• Wire break detection
• Supply voltage monitoring
• Substitute value output for safe operation during faults
• Comprehensive module status reporting

Compliance & Safety

• RoHS compliant since 15.09.2017
• WEEE (2012/19/EU) Take-Back Obligation: Yes
• Export Control: AL: N / ECCN: 9N9999
• REACH Article 33 compliance: Contains Lead, Lead monoxide, Silicic acid lead salt, and 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one in concentrations higher than 0.1% w/w
• Standard product classification with return guidelines applicable

Applications Ideal for medium-density digital output applications in industrial automation systems. Perfect for controlling solenoid valves, indicator lights, contactors, and other 24V DC loads. The source output configuration makes it suitable for PNP sensor interfaces and positive logic control systems.

Important Notes

• Compatible with ET 200SP distributed I/O system
• Requires appropriate BU-type A0 interface modules
• Source output (PNP) configuration for positive switching
• Comprehensive diagnostics ensure reliable operation
• Substitute value output provides safe fallback during system faults
• Colour Code CC02 distinguishes from other module variants
