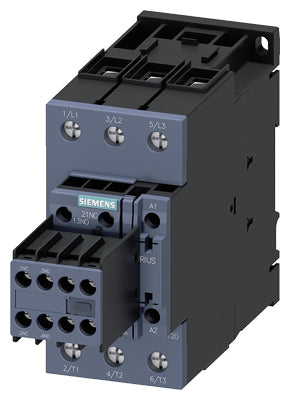

Siemens Contactor, screw terminal, 2NO+NC, 22kW, 24VAC
View on Siemens 📄 Datasheet
Siemens

Siemens Contactor, screw terminal, 2NO+NC, 22kW, 24VAC Part number 3RT2036-1AB04

EAN / Barcode 4011209939585
Product Type Control Panel
Product Class Power contactor, AC switching
ETIM Class Power contactor, AC switching
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Power Contactor

The SIRIUS 3RT2 power contactor is designed for switching motors with high reliability and compact design.

Technical details:

  • Type: AC-3e/AC-3
  • Current: 51 A
  • Power: 22 kW / 400 V
  • Number of poles: 3-pole
  • Control voltage: 24 V AC
  • Frequency: 50 Hz
  • Auxiliary contacts: 2 NO + 2 NC
  • Terminal type: screw terminal
  • Size: S2
  • Removable auxiliary switch

Customer benefits:

  • Part of the modular SIRIUS system with optimally coordinated products.
  • Convincing performance from a compact design with high contact reliability.
  • Can be combined with a variety of other components in the load feeder.
  • Factory tested device combinations.
  • Best connection to the automation level for every application (parallel, via ASi or IO-Link).
  • Integrated auxiliary switches reduce design complexity.
  • Front-panel terminals simplify wiring.
  • Climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA).
  • IE3/IE4-ready.
  • Available in various sizes and performance ranges with AC and DC operation.
  • Spring-type terminals available for fast, maintenance-free and vibration-proof connection.
  • Comprehensive range of standardized accessories for all sizes.
  • Link modules, function modules, and the SIRIUS 3RV29 infeed system reduce wiring expense.
  • Simple, efficient and always up to date - SIRIUS modular system.

Technical Specifications

Depth174 mm
Height114 mm
Modular versionYes
Number of auxiliary contacts as normally closed contact2
Number of auxiliary contacts as normally open contact2
Number of normally open contacts as main contact3
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz690 V
Rated control supply voltage AC 50 Hz24 V
Rated operation current Ie at AC-1, 400 V70 A
Rated operation current Ie at AC-3, 400 V51 A
Rated operation current Ie at AC-4, 400 V41 A
Rated operation power at AC-3, 400 V22 kW
Rated operation power NEMA29.419952 kW
Type of electrical connection of main circuitScrew connection
Voltage type for actuatingAC
Width55 mm
View complete specifications on Siemens
