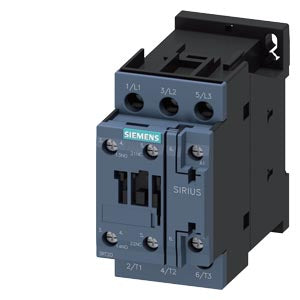

Siemens Contactor, 3-pole, size S0, 1NO + 1NC, 15kW
View on Siemens 📄 Datasheet
Siemens

Siemens Contactor, 3-pole, size S0, 1NO + 1NC, 15kW Part number 3RT2027-1AF00

EAN / Barcode 4011209833302
Product Type Control Panel
Product Class Power contactor, AC switching
ETIM Class Power contactor, AC switching
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Power Contactor

The SIRIUS 3RT2 power contactor is designed for switching motors with high contact reliability in a compact design.

Technical details:

  • AC-3e/AC-3
  • 32 A
  • 15 kW / 400 V
  • 3-pole
  • 110 V AC
  • 50 Hz
  • Auxiliary contacts: 1 NO + 1 NC
  • Screw terminal
  • Size: S0

Customer benefits:

  • Part of the modular SIRIUS system with optimally coordinated products.
  • Convincing performance from a compact design.
  • Can be combined with a variety of other components in the load feeder.
  • Factory-tested device combinations.
  • Best connection to the automation level for every application (parallel, via ASi or IO-Link).
  • Integrated auxiliary switches reduce design complexity.
  • Front-panel terminals simplify wiring.
  • Climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA).
  • IE3/IE4-ready.
  • Available in various sizes and a wide performance range with AC and DC operation.
  • Devices available with spring-type terminals for fast, maintenance-free, and vibration-proof connection.
  • Comprehensive range of accessories standardized for all sizes.
  • Available link modules and function modules reduce wiring expense.
  • Simple, efficient, and always up to date - SIRIUS modular system.

Technical Specifications

Depth97 mm
Height85 mm
Modular versionYes
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Number of normally open contacts as main contact3
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz690 V
Rated control supply voltage AC 50 Hz110 V
Rated operation current Ie at AC-1, 400 V50 A
Rated operation current Ie at AC-3, 400 V32 A
Rated operation current Ie at AC-4, 400 V22 A
Rated operation power at AC-3, 400 V15 kW
Rated operation power NEMA14.709976 kW
Type of electrical connection of main circuitScrew connection
Voltage type for actuatingAC
Width45 mm
View complete specifications on Siemens
