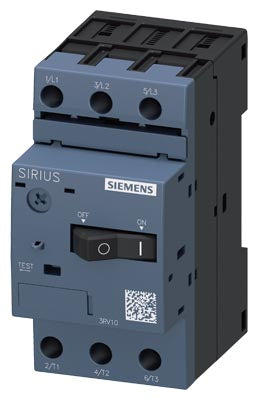

Siemens Circuit breaker for motor protection, size S00, 1.4 - 2A (N) Part number 3RV1011-1BA10

Product Overview

The Siemens 3RV1011-1BA10 is a motor-protection circuit breaker from the SIRIUS 3RV1 series. It is designed to protect small motors against overload and short-circuit, combining adjustable thermal overload release and magnetic short-circuit protection in a compact S00-sized housing. The device is ideal for small motor feeders, compact machinery, or control-panel installations where motor protection and cost-effective reliability are required.

Key Features

• Motor-protection circuit breaker, SIRIUS 3RV1, size S00
• Thermal (overload) adjustable release setting: 1.4 … 2 A
• Magnetic (instantaneous) short-circuit release: 26 A
• Combined overload + short-circuit protection with single device — simplifies motor branch protection
• Screw-terminal connections — secure wiring suitable for panel/motor control wiring
• Compact size — suitable for small motors / compact motor starters
• Standard insulation voltage rating up to 690 V AC — suitable for typical industrial motor supply voltages
• Protection against surge voltages up to 6 kV — provides robustness in industrial environments
• Mechanical & electrical endurance: typical 100,000 operating cycles — ensuring long-term reliability
• Switching capacity and overload protection in a single handset — convenient for compact motor control units or stand-alone motor feeders

Technical Specifications

• Article Number: 3RV1011-1BA10
• Product Family: SIRIUS 3RV1 motor-protection breakers
• Breaker Size: S00
• Overload (Thermal) Setting Range: 1.4 – 2 A
• Short-Circuit (Magnetic) Trip Current: 26 A
• Number of Poles: 3 (3-phase motor protection)
• Rated Insulation Voltage (Ui): 690 V AC
• Impulse Withstand Voltage: 6 kV
• Protection / Housing Class: IP20 (front / enclosure protection required)
• Operating Ambient Temperature: –20 °C … +60 °C
• Switching Endurance (typical): 100,000 cycles (mechanical & electrical)
• Mounting / Connection: DIN-rail or panel mounting compatible with screw-terminal wiring
• Use Case: Overload and short-circuit protection for small motors, feeders, compact motor starters, control panels

Compliance & Standards

• Part of Siemens SIRIUS 3RV1 motor-protection product line — designed to meet motor-protector standards for industrial use
• Suitable for 3-phase AC motor protection with insulated supply voltages up to 690 V
• Provides both overload and short-circuit protection in one compact unit — approved for safe motor feeder protection when used per Siemens guidelines

Applications

The 3RV1011-1BA10 is ideal for protecting small three-phase motors, pumps, fans, small compressors or auxiliary drives. It is especially useful for compact motor control cabinets, retrofit motor starters, small machinery, or any installation where space is limited but reliable motor protection is needed. Because of its adjustable overload setting, it can be tuned to the motor’s full-load current for optimal protection.
