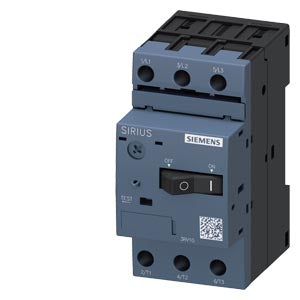

Siemens Circuit breaker for motor protection, size S00, 10A Part number 3RV1011-0HA10

Product Overview

The 3RV1011-0HA10 is a circuit breaker size S00 for motor protection, CLASS 10 A-release 0.55...0.8 A N-release 10 A Screw terminal Standard switching capacity. This SIRIUS motor starter protector belongs to the highly reliable 3RV1 series and provides comprehensive protection for three-phase motors and other electrical loads.

Key Features & Benefits

Motor Protection Excellence - This motor starter protector provides overload and short-circuit protection with CLASS 10 tripping characteristics according to IEC 60947-4-1. The device features phase loss sensitivity to ensure reliable motor protection in the event of phase failure or significant phase unbalance.

Compact S00 Design - Available in size S00 (45 mm width) up to a maximum rated current of 12 A, making it ideal for space-constrained applications while maintaining full protection capabilities.

Reliable Connection Technology - Features screw-type connection system with M3 combination screws supporting up to two conductors with different cross-sections for both main and auxiliary circuits. Tightening torque specification of 0.8-1.2 Nm ensures secure electrical connections.

Technical Specifications

• Current Setting Range: 0.55 to 0.8 A adjustable overload release
• Short-Circuit Release: 10 A (N-release) factory-set
• Rated Operational Voltage: Up to 690 V AC according to IEC standards
• Breaking Capacity: 100 kA short-circuit breaking capacity at 400 V AC
• Frequency Range: 50/60 Hz
• Protection Class: CLASS 10 according to IEC 60947-4-1

Installation & Mounting

The unit supports flexible mounting options including snapping onto a 35 mm DIN rail according to DIN EN 60715 or screw mounting onto a baseplate. The device can be mounted in any position and fed from either top or bottom terminals.

Operating Environment

• Ambient Temperature: -20°C to +60°C with temperature compensation
• Degree of Protection: IP20 on front face
• Installation Altitude: Up to 2,000 m above sea level
• Compliance: Meets requirements of IEC 60947-1, EN 60947-1 (VDE 0660 Part 100), IEC 60947-2, EN 60947-2 (VDE 0660 Part 101), and IEC 60947-4-1, EN 60947-4-1 (VDE 0660 Part 102)

Applications

Ideal for:

• Three-phase motor protection up to 0.8 A rated current
• System protection applications
• Load protection in industrial automation
• Integration with SIRIUS modular system components
• Maintenance and safety switching operations

Safety Features

• Test Function: Built-in test slide for checking overload release operation
• Manual Operation: Toggle switch with integrated locking device for secure manual on/off switching
• Lockout Capability: Can be secured against unauthorized operation with padlock (shackle diameter 3.5-4.5 mm)
• Visual Status: Clear indication of device position and tripping status

Download existing graphical data for this product:

• Technical Data Sheet
• CAx Data & 3D Models
• Equipment Manual - SIRIUS 3RV Motor Starter Protectors
• Dimension Drawings
• Circuit Diagrams & Connection Data
• Time-Current Characteristics

Quality & Compliance

This product is manufactured in Germany and meets all relevant international standards including RoHS directive compliance, WEEE obligations, and REACH regulations. The device features long-term stable bimetal technology ensuring reliable operation over many years.
