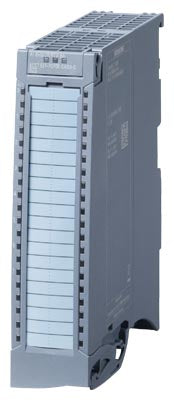

Siemens Analog input module, AI 8xU/I/R/RTD BA, 16 bit resolution Part number 6ES7531-7QF00-0AB0

Product Overview

The Siemens 6ES7531-7QF00-0AB0 is the Siemens SIMATIC S7-1500 analog input module, AI 8×U/I/R/RTD BA, providing eight configurable analog input channels for voltage, current, resistance, and RTD temperature sensors. With 16-bit resolution, high accuracy and built-in diagnostics, it enables precise and flexible analog signal acquisition for advanced industrial automation applications.

Key Features

• 8 analog input channels for voltage, current, resistance, or RTD sensors
• 16-bit resolution for high-precision measurements
• Supports voltage inputs, current loops (0–20 mA / 4–20 mA), resistance inputs, and RTD sensors such as PT100 or PT1000
• High accuracy of approximately 0.5% over the full measurement range
• Integrated diagnostics for wire break, short-circuit and out-of-range signals
• Standard S7-1500 module width for compact panel layout
• Front connector interface (screw or push-in type, ordered separately if needed)
• Shield bracket and shield terminal included for EMI-safe wiring
• Suitable for demanding measurement and monitoring tasks in industrial control systems

Technical Specifications

• Article Number: 6ES7531-7QF00-0AB0
• Module Type: AI 8×U/I/R/RTD BA analog input module
• Number of Inputs: 8 analog channels
• Resolution: 16-bit
• Accuracy: approx. 0.5%
• Input Types: Voltage, current, resistance, RTD (PT100, PT1000)
• Common-Mode Voltage Tolerance: approximately 4 V
• Connector Type: Front connector (ordered separately when required)
• Included Accessories: Shield bracket and shield terminal
• Dimensions: Standard SIMATIC S7-1500 module size for rack installation
• Power Loss: Low, typical for S7-1500 analog modules
• Diagnostics: Hardware diagnostics for wiring faults and invalid signal ranges
• Compatible Systems: SIMATIC S7-1500 and ET 200-based automation systems

Compliance & Certifications

• Part of the Siemens SIMATIC S7-1500 I/O module family
• Designed and tested according to Siemens industrial automation standards
• Suitable for global industrial, process and machine automation applications

Applications

This module is ideal for precise analog signal acquisition in industrial automation environments, including temperature measurement with RTDs, process monitoring, instrumentation integration, machine control, data acquisition and SCADA systems. Its multi-signal capability makes it a versatile choice for advanced SIMATIC S7-1500-based control architectures.
