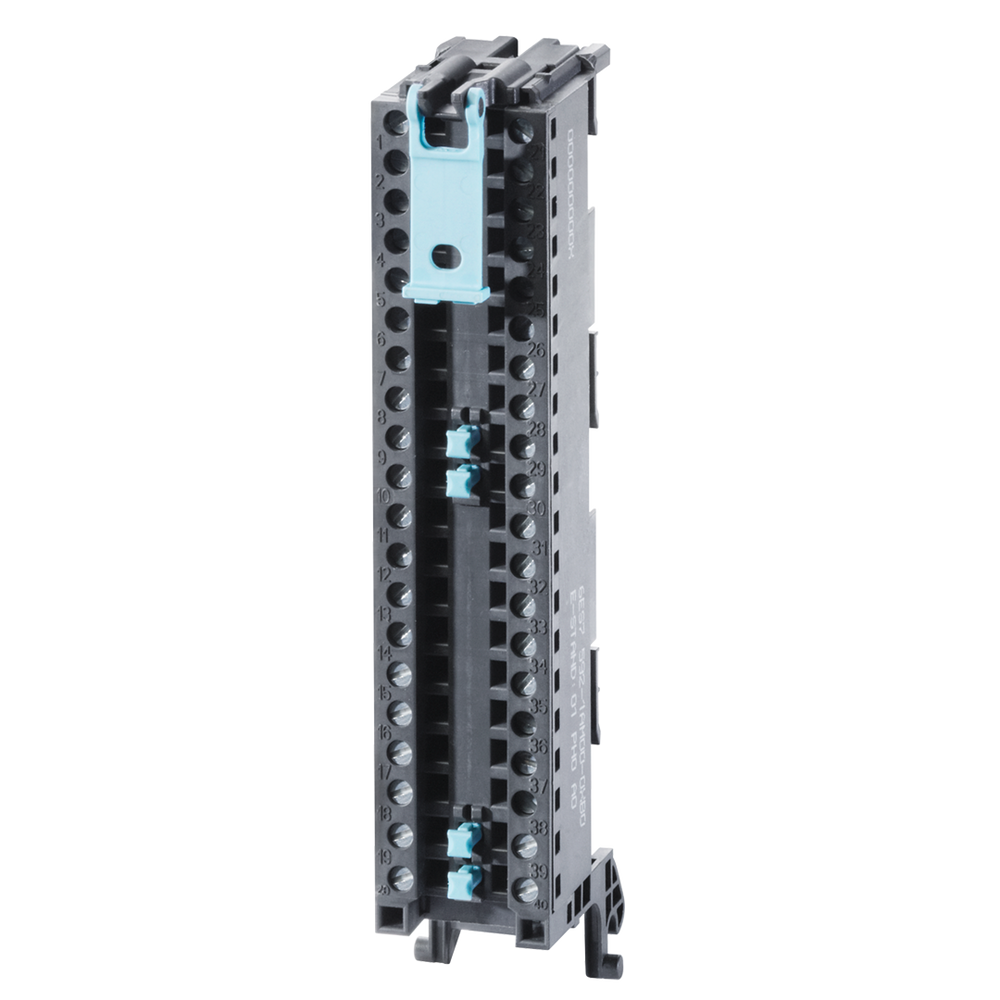

Siemens Simatic S7-1500 Front connector, screw-type Part number 6ES7592-1AM00-0XB0

Name: Siemens Simatic S7-1500 Front connector, screw-type
Brand: Siemens
SKU: 6ES7592-1AM00-0XB0

EAN / Barcode 4025515078159

Product Type Control Panel

Category HMI's & PLC's

Sub-category IO Module

Back Order

💬 Ask an Expert - Technical Support Available

✓ RoHS Declaration

Product Description

This SIMATIC S7-1500 front connector with screw terminals is designed for 35 mm wide modules. It includes 40 poles for I/O connections and comes with 4 potential bridges and cable ties for easy installation.

Technical Specifications

Country of Origin	Germany
Part Depth (mm)	46mm
Part Width (mm)	29.8mm
Part Height (mm)	130.5mm
Weight (g)	123g
Packaging size / unit	pc(s)
Tightening Torque	0.4 - 0.7Nm
Screw Type	Screwdriver / conical design / 3mm to 3.5mm
Connection Type	Screw terminals
