Description

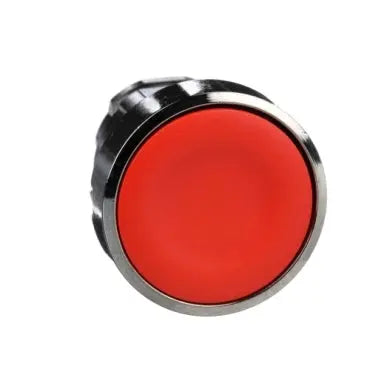

xThe red flush push-button head from the Harmony XB4 series is built for 22.5 mm mounting and features a durable metal bezel. It is equipped with a spring-return mechanism, offering up to 10 million mechanical cycles for reliable performance in industrial applications.
Specifications
x| IP Rating | IP66 conforming to IEC 60529 IP67 IP69 IP69K |
| Country of Origin | Germany |
| Compliance/Certifications | BV / CSA / CSA C22.2 No 14 / DNV / GL / IEC 60947-1 / IEC 60947-5-1 / IEC 60947-5-4 / IEC 60947-5-5 / JIS C8201-1 / JIS C8201-5-1 / LROS (Lloyds register of shipping) / UL 508 / UL listed |
| Temperature: Operating | -40°C to 70°C |
| Part Depth (mm) | 28mm |
| Part Width (mm) | 29mm |
| Part Height (mm) | 29mm |
| Diameter (mm) | 22.5mm |
| Packaging size / unit | 1 pc(s) |
| Material: Product | Chromium-plated metal |
| Mounting Type | Front mounting |
| Operating Period | 10000000 cycles (Mechanical) |
| Warranty | 18 Months |
| Colour | Black / Red |
