Description

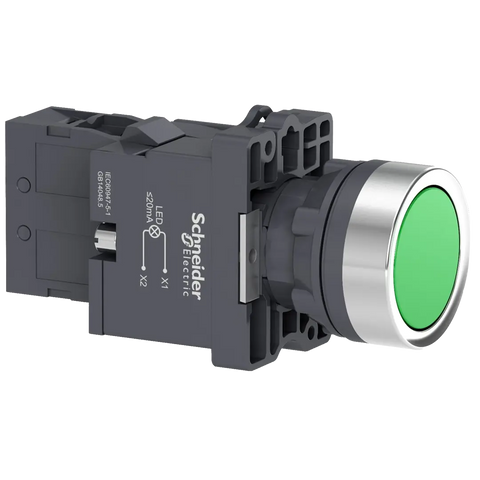

xThis green illuminated push-button provides reliable operation on a 220V AC supply. It includes slow-break NO contacts and a spring-return mechanism for intuitive panel use.
Specifications
x| IP Rating | IP65 |
| Compliance/Certifications | CCC / CE / GB 14048.1 / GB 14048.5 / IEC 50102 / IEC 60529 / IEC 60947-1 / IEC 60947-5-1 |
| Temperature: Operating | France |
| Temperature: Operating | -25°C to 55°C |
| Part Depth (mm) | 79.5 mm |
| Part Width (mm) | 30 mm |
| Part Height (mm) | 42 mm |
| Weight (g) | 64 g |
| Packaging size / unit | 1 / 5 / 70 pc(s) |
| Tightening Torque | 0.8 Nm |
| Connection Type | Faston terminals, connection size: 6.3 mm / Screw clamp terminals, clamping capacity: 1 x 0.5 mm² / Screw clamp terminals, clamping capacity: 1 x 2.5 mm² / Screw clamp terminals, clamping capacity: 2 x 1.5 mm² |
| Supply Voltage | 176 - 242 VAC |
| Current Rating / Rated Current | 0.27 A at 250 V, DC-13, Q600 / 3 A at 240 V, AC-15, A600 |
| Colour | Green |
