Description

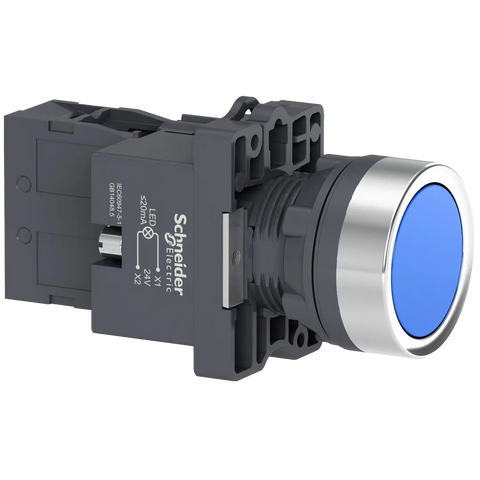

xThis blue illuminated push-button operates on 24V AC/DC. It features a flush-mounted design, NO slow-break contacts, and a spring-return mechanism for precise panel control.
Specifications
x| IP Rating / Detailed | IP65 |
| Compliance/Certifications | IEC 60947-5-1,GB 14048.1,GB 14048.5,IEC 60947-1 |
| Temperature: Operating | -25…55 °C |
| Part Depth (mm) | 74.5mm |
| Part Width (mm) | 30mm |
| Part Height (mm) | 42mm |
| Tightening Torque (N.m) | 0.8 Nm |
| Connection Style | 1 NO |
| Connection Type | Screw clamp terminals, clamping capacity: 2 x 1.5 mm²,Screw clamp terminals, clamping capacity: 1 x 2.5 mm²,Faston terminals, connection size: 6.3 mm,Screw clamp terminals, clamping capacity: 1 x 0.5 mm² |
| Supply Voltage | 24 V AC/DC 50/60 Hz |
| Current Rating | 0.27 A at 250 V, DC-13, Q600,3 A at 240 V, AC-15, A600 |
| Current Consumption | < 20 mA |
| Operating Period(Mech) | 1500000 cycles |
| Operating Period(Elec) | 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4,500000 cycles, DC-13, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| Colour | Blue |
