Description

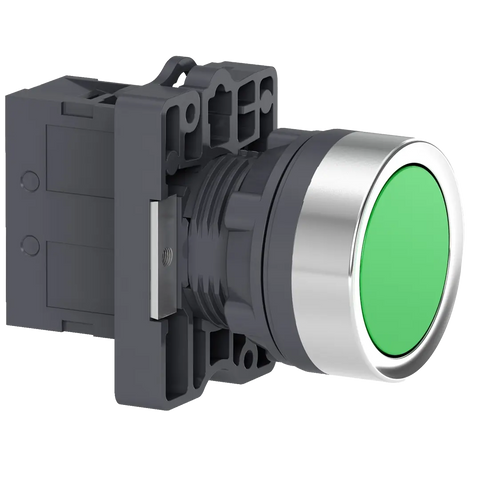

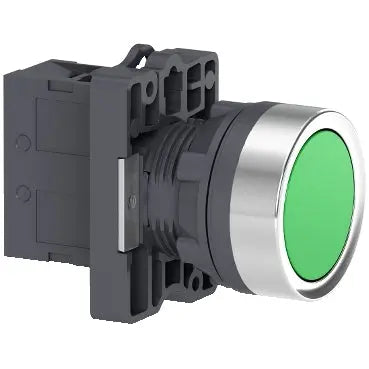

xThis green flush push-button from the Easy Harmony XA2 range features a 1NO contact, spring-return mechanism, and a durable plastic bezel. It is designed for 22 mm mounting and provides a high mechanical durability of up to 1.5 million cycles.
Specifications
x| IP Rating | IP65 conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | CCC / CE / GB 14048.1 / GB 14048.5 / IEC 60947-1 / IEC 60947-5-1 |
| Temperature: Operating | -25°C to 55 °C |
| Part Depth (mm) | 54.7mm |
| Part Width (mm) | 30mm |
| Part Height (mm) | 42mm |
| Diameter (mm) | 22.5mm |
| Weight (g) | 32g |
| Packaging size / unit | 1 pc(s) |
| Tightening Torque | 0.8 Nm |
| Material: Product | Plastic |
| Connection Style | 1 NO |
| Connection Type | Screw clamp terminal, <= 2 x 1.5 mm² Screw clamp terminal, <= 1 x 2.5 mm² Screw clamp terminal, >= 1 x 0.5 mm² Faston terminals, connection size: 6.3 mm |
| Current Rating / Rated Current | 3 A at 240 V / 6 A at 120 V, / 0.1 A at 600 V / 0.27 A at 250 V / 0.55 A at 125 V / 1.2 A at 600 V |
| Operating Period | 1500000 cycles (Mechanical) / 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 / 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 (Electrical) |
| Colour | Black / Green |
