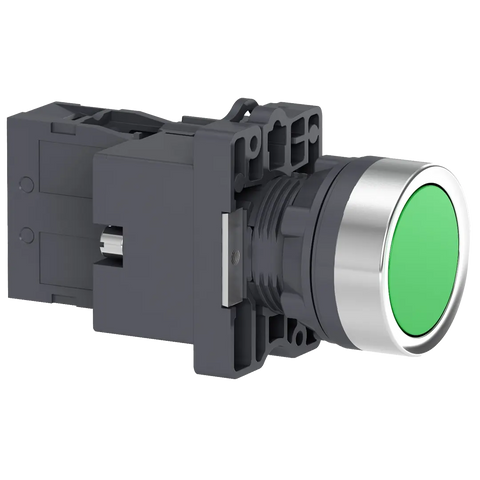

Schneider Illuminated pushbutton, flush, green, 1NO

This green flush illuminated push-button operates on a 24V AC/DC supply. It offers robust durability with slow-break NO contacts and a spring-return operator for reliable signaling.
Vendor: Schneider Electric
SKU: XA2EW33B1
Availability: In stock
Product type: Control Panel
Please hurry! Only 39 left in stock
Description
Description
x
This green flush illuminated push-button operates on a 24V AC/DC supply. It offers robust durability with slow-break NO contacts and a spring-return operator for reliable signaling.
Specifications
Specifications
x
IP RatingIP65
Compliance/CertificationsCCC / CE / GB 14048.1 / GB 14048.5 / IEC 50102 / IEC 60529 / IEC 60947-1 / IEC 60947-5-1
Temperature: OperatingFrance
Temperature: Operating-25°C to 55°C
Part Depth (mm)74.5 mm
Part Width (mm)30 mm
Part Height (mm)42 mm
Weight (g)56 g
Packaging size / unit1 / 70 pc(s)
Tightening Torque0.8 Nm
Connection TypeFaston terminals, connection size: 6.3 mm / Screw clamp terminals, clamping capacity: 1 x 0.5 mm² / Screw clamp terminals, clamping capacity: 1 x 2.5 mm² / Screw clamp terminals, clamping capacity: 2 x 1.5 mm²
Supply Voltage24 V AC/DC 50/60 Hz
Current Rating / Rated Current0.27 A at 250 V, DC-13, Q600 / 3 A at 240 V, AC-15, A600
ColourGreen
Documents
Documents
x
Download Datasheet
