Description

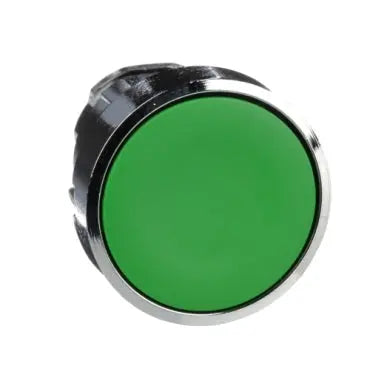

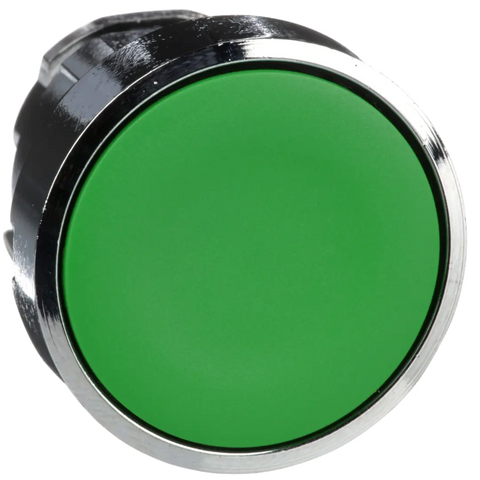

xThis green, flush push-button head from the Harmony XB4 range features a spring-return mechanism and chromium-plated metal bezel. Designed for 22.5 mm mounting, it offers high durability with 10 million cycles, making it suitable for heavy-duty applications in industrial environments.
Specifications
x| IP Rating | IP66 conforming to IEC 60529 IP67 IP69 IP69K |
| Country of Origin | Germany |
| Compliance/Certifications | BV / CSA / CSA C22.2 No 14 / DNV / GL / IEC 60947-1 / IEC 60947-5-1 / IEC 60947-5-4 / IEC 60947-5-5 / JIS C8201-1 / JIS C8201-5-1 / LROS (Lloyds register of shipping) / UL 508 / UL listed |
| Temperature: Operating | -40°C to 70°C |
| Part Depth (mm) | 28mm |
| Part Width (mm) | 29mm |
| Part Height (mm) | 29mm |
| Diameter (mm) | 22.5mm |
| Packaging size / unit | 1 pc(s) |
| Material: Product | Chromium-plated metal |
| Mounting Type | Front mounting |
| Operating Period | 10000000 cycles (Mechanical) |
| Warranty | 18 Months |
| Colour | Black / Green |
