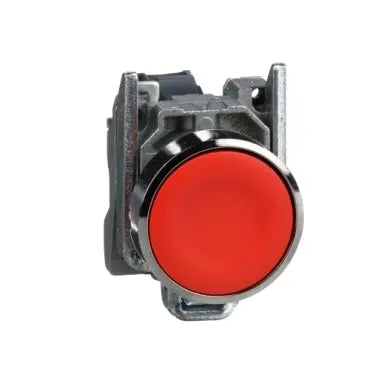

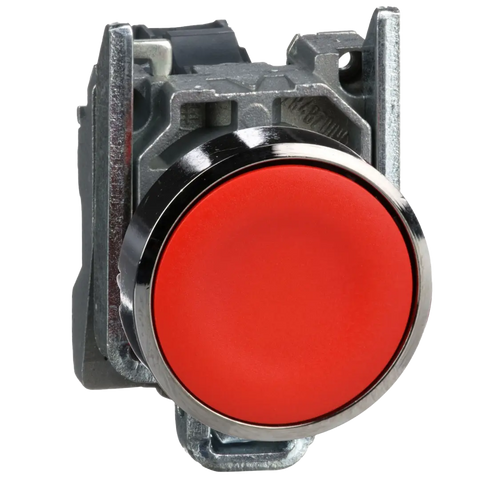

Schneider Pushbutton, flush, spring, red, 1NC, Ø 22 Part number XB4BA42

This push-button from the Harmony XB4 series is a red, metal, flush, spring-return type, designed for 22 mm mounting. It features 1 NC contact with screw clamp terminals, suitable for industrial control and signaling applications, and is rated for mechanical durability up to 10 million cycles.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: In stock
Product type: Control Panel
Please hurry! Only 3 left in stock
Description
Description
x
This push-button from the Harmony XB4 series is a red, metal, flush, spring-return type, designed for 22 mm mounting. It features 1 NC contact with screw clamp terminals, suitable for industrial control and signaling applications, and is rated for mechanical durability up to 10 million cycles.
Specifications
Specifications
x
IP RatingIP66 conforming to IEC 60529 IP67 IP69 IP69K
Country of OriginGermany
Compliance/CertificationsBV / CSA / CSA C22.2 No 14 / DNV / GL / IEC 60947-1 / IEC 60947-5-1 / IEC 60947-5-4 / IEC 60947-5-5 / JIS C8201-1 / JIS C8201-5-1 / LROS (Lloyds register of shipping) / UL 508 / UL listed
Temperature: Operating-40°C to 70°C
Part Depth (mm)52mm
Part Width (mm)30mm
Part Height (mm)47mm
Weight (g)80g
Packaging size / unit1 pc(s)
Tightening Torque0.8 - 1.2 Nm
Connection Style1 NC
Connection TypeScrew clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1
Current Rating / Rated Current3 A at 240 V / 6 A at 120 V, / 0.1 A at 600 V / 0.27 A at 250 V / 0.55 A at 125 V / 1.2 A at 600 V
Operating Period10000000 cycles (Mechanical) / 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5\nconforming to IEC 60947-5-1 appendix C\n1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5\nconforming to IEC 60947-5-1 appendix C\n1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5\nconforming to IEC 60947-5-1 appendix C\n1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5\nconforming to IEC 60947-5-1 appendix C\n1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5\nconforming to IEC 60947-5-1 appendix C (Electrical)
Warranty18 Months
