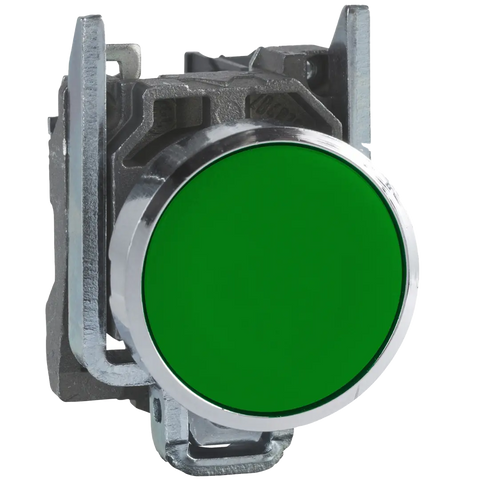

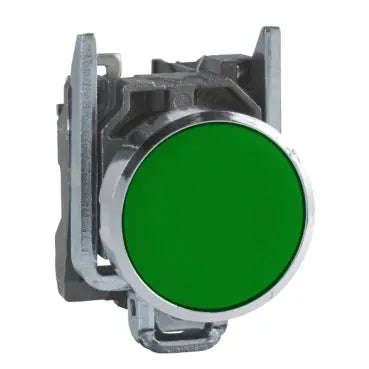

Schneider Pushbutton, metal, spring return, green, 1NO Part number XB4BA31

This green flush push button from Harmony XB4 features a 22 mm diameter and a spring return mechanism. It includes 1 NO contact and is designed for industrial applications, offering IP66, IP67, IP69, and IP69K protection.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: In stock
Product type: Control Panel
Please hurry! Only 12 left in stock
Description
Description
x
This green flush push button from Harmony XB4 features a 22 mm diameter and a spring return mechanism. It includes 1 NO contact and is designed for industrial applications, offering IP66, IP67, IP69, and IP69K protection.
Specifications
Specifications
x
IP RatingIP66 conforming to IEC 60529 IP67 IP69 IP69K
Country of OriginGermany
Compliance/CertificationsCSA / CSA C22.2 No 14 / DNV / GL / IEC 60947-1 / IEC 60947-5-1 / IEC 60947-5-4 / IEC 60947-5-5 / JIS C8201-1 / JIS C8201-5-1 / LROS (Lloyds register of shipping) / UL 508 / UL listed / BV
Temperature: Operating-40°C to 70°C
Part Depth (mm)52mm
Part Width (mm)30mm
Part Height (mm)47mm
Weight (g)80g
Packaging size / unit1 pc(s)
Tightening Torque0.8 - 1.2 Nm
Material: ProductChromium-plated metal
Screw TypeCross compatible with Philips no 1 screwdriver / Slotted compatible with flat Ø 4 mm screwdriver / Slotted compatible with flat Ø 5.5 mm screwdriver
Connection TypeScrew clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1
Current Rating / Rated Current3 A at 240 V / 6 A at 120 V, / 0.1 A at 600 V / 0.27 A at 250 V / 0.55 A at 125 V / 1.2 A at 600 V
Operating Period1000000 cycles, AC-15, 2 A at 230 V, operating rate
Warranty18 Months
ColourGreen
