Description

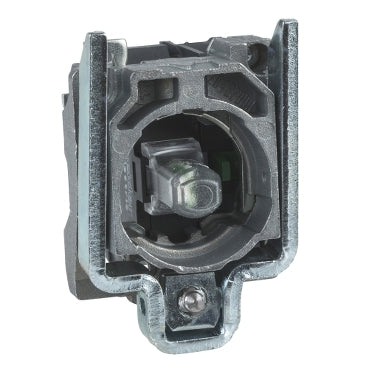

xThis orange light block assembly operates at 24 V AC/DC and features a slow-break contact. It includes an integral LED, making it suitable for clear visual indication in control panels, with a metal body and high durability.
Specifications
x| Country of Origin | Germany |
| Compliance/Certifications | CSA C22.2 No 14 |
| Temperature: Operating | -40°C to 70 °C |
| Part Width (mm) | 30mm |
| Part Height (mm) | 47mm |
| Weight (g) | 64g |
| Packaging size / unit | 1 / 150 / 1200 pc(s) |
| Material: Product | Silver alloy (Ag/Ni) |
| Screw Type | Cross compatible with Philips no 1 screwdriver / Cross compatible with pozidriv No 1 screwdriver / Slotted compatible with flat Ø 4 mm screwdriver / Slotted compatible with flat Ø 5.5 mm screwdriver |
| Connection Style | 1 NO |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1 / Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| Supply Voltage | 24 VAC/DC at 50/60 Hz |
| Current Consumption | 18 mA |
| Operating Period | 5000000 cycles |
| Warranty | 18 Months |
| Colour | Orange |
