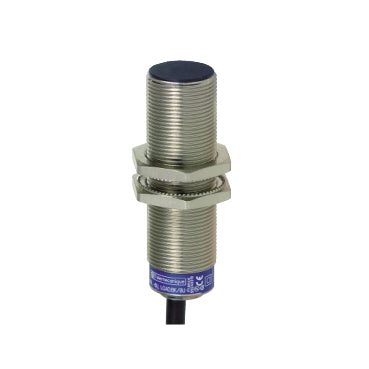

Schneider Inductive proximity sensor, M18, 24 - 240VAC/DC, 2m cable Part number XS1M18MB250

This M18 inductive proximity sensor detects the presence of metallic targets without physical contact, switching output when an object enters its sensing range. It operates across a 24-240 VAC/DC supply range, allowing use in both AC and DC control circuits, and is fitted with a 2 m cable for direct...
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Description
Description
x

This M18 inductive proximity sensor detects the presence of metallic targets without physical contact, switching output when an object enters its sensing range. It operates across a 24-240 VAC/DC supply range, allowing use in both AC and DC control circuits, and is fitted with a 2 m cable for direct wiring into the control panel or junction box. Typical applications include position and end-of-travel detection on machinery and automation equipment where a compact, threaded-body sensor is required.

Specifications
Specifications
x
Productdatasheet
Range of productTelemecanique Inductive proximity sensors XS
Series nameGeneral purpose
Sensor typeInductive proximity sensor
Wiring configuration2-wire
Output circuit typeAC/DC
Protection typeShort-circuit protection multi voltage
Device application2-wire DC short-circuit protection
Sensor nameXS1
Sensor designCylindrical M18
Size60 mm
Body typeFixed
Detector flush mountingFlush mountable
MaterialMetal
Type of output signalDiscrete
Wiring technique2-wire
[Sn] nominal sensing distance5 mm
Discrete output function1 NC
Electrical connectionCable
Cable length2 m
[Us] rated supply voltage24...210 V DC 24...240 V AC 50/60 Hz
IP degree of protectionIP68 double insulation conforming to IEC 60529
Thread typeM18 x 1
Detection faceFrontal
Front materialPPS
Enclosure materialNickel plated brass
18 May, 20221
Operating zone0…4 mm
Differential travel1...15% of Sr
Cable composition2 x 0.34 mm²
Wire insulation materialPvR
Status LEDOutput state: 1 LED (yellow) Supply on: 1 LED (green)
Maximum residual current1.5 mA open state
Switching frequency<= 2000 Hz DC <= 25 Hz AC
Maximum voltage drop<5.5 V (closed state)
Maximum delay first up70 ms
Maximum delay response2 ms
Maximum delay recovery4 ms
MarkingCE
Threaded length51 mm
Length60 mm
Net weight0.12 kg
Product certificationsCCC CSA UL
Ambient air temperaturefor -25…70 °C
Vibration resistance25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
Shock resistance50 gn for 11 ms conforming to IEC 60068-2-7
Unit Type of Package 1PCE
Number of Units in Package1 1
Package 1 Weight106.0 g
Package 1 Height13.1 cm
Package 1 width9.4 cm
Package 1 Length4.1 cm
Unit Type of Package 2S03
Package 2 Weight5.828 kg
Package 2 Height30 cm
Package 2 width30 cm
Package 2 Length40 cm
Package 3 Height30 cm
