Schneider Inductive proximity sensor, 2-wire, M30, 2m cable
Schneider Inductive proximity sensor, 2-wire, M30, 2m cable

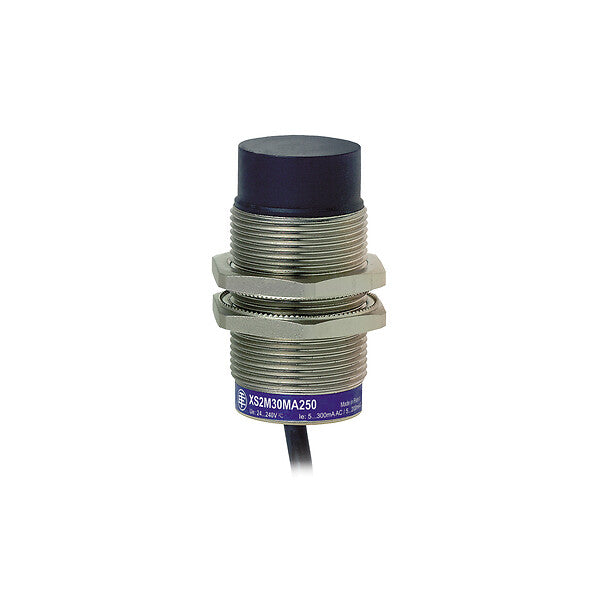

Schneider Inductive proximity sensor, 2-wire, M30, 2m cable Part number XS2M30MA250

This M30 inductive proximity sensor detects the presence of metallic targets without physical contact, using a 2-wire connection for simplified wiring into existing control circuits. It is supplied with a 2 metre cable for direct connection to a control panel or junction box. Typical applications include machine and equipment automation...
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Description
Description
x

This M30 inductive proximity sensor detects the presence of metallic targets without physical contact, using a 2-wire connection for simplified wiring into existing control circuits. It is supplied with a 2 metre cable for direct connection to a control panel or junction box. Typical applications include machine and equipment automation where reliable metal object detection is required.

Specifications
Specifications
x
Productdata sheet
Range of productTelemecanique Inductive proximity sensors XS
Series nameGeneral purpose
Sensor typeInductive proximity sensor
Wiring configuration2-wire
Output circuit typeAC/DC
Protection typeShort-circuit protection multi voltage
Device application2-wire DC short-circuit protection
Sensor nameXS2
Sensor designCylindrical M30
Size63 mm
Body typeFixed
Detector flush mountingNon flush mountable
MaterialMetal
Type of output signalDiscrete
Wiring technique2-wire
[Sn] nominal sensing distance15 mm
Discrete output function1 NO
Electrical connectionCable
Cable length2 m
[Us] rated supply voltage24...210 V DC 24...240 V AC 50/60 Hz
IP degree of protectionIP68 double insulation conforming to IEC 60529
Thread typeM30 x 1.5
Detection faceFrontal
Front materialPPS
Enclosure materialNickel plated brass
Sep 7, 20221
Operating zone0…12 mm
Differential travel1...15% of Sr
Cable composition2 x 0.34 mm²
Wire insulation materialPvR
Status LEDOutput state: 1 LED (yellow) Supply on: 1 LED (green)
Supply voltage limits20…264 V AC/DC
Maximum residual current1.5 mA open state
Switching frequency<= 1000 Hz DC <= 25 Hz AC
Maximum voltage drop<5.5 V (closed state)
Maximum delay first up70 ms
Maximum delay response2 ms
Maximum delay recovery10 ms
MarkingCE
Threaded length41 mm
Length63 mm
Net weight0.205 kg
Product certificationsCCC CSA UL
Ambient air temperaturefor -25…70 °C
Vibration resistance25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
Shock resistance50 gn for 11 ms conforming to IEC 60068-2-7
Unit Type of Package 1PCE
Number of Units in Package1 1
Package 1 Weight182.0 g
Package 1 Height4.1 cm
Package 1 width10.8 cm
Package 1 Length12.7 cm
Unit Type of Package 2S03
Package 2 Weight8.45 kg
Package 2 Height30.0 cm
Package 2 width30.0 cm
Package 2 Length40.0 cm
Package 3 Height30 cm
