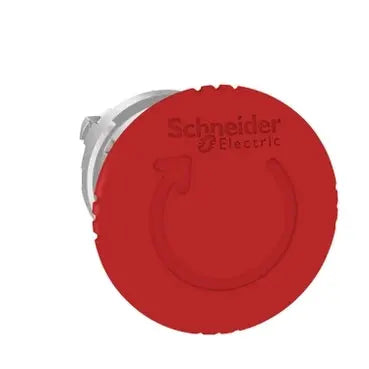

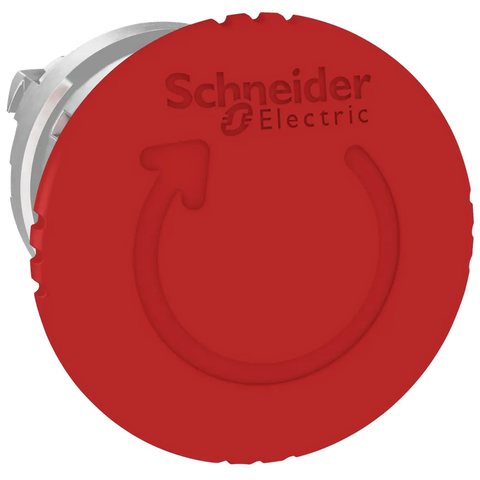

xThis Harmony XB4 emergency stop head features a red mushroom Ø40 mm button with a chromium-plated metal bezel. Designed for Ø22.5 mm mounting, it includes a mechanical latching system with a turn-to-release function. It is IP66/IP69K rated for use in harsh environments.
Specifications
x| IP Rating | IP66 conforming to IEC 60529 IP69 IP69K |
| Country of Origin | Germany |
| Compliance/Certifications | BV / CSA / CSA C22.2 No 14 / DNV / GB 14048.5 / GL / IEC 60204-1 / IEC 60364-5-53 / IEC 60947-1 / IEC 60947-5-1 / IEC 60947-5-4 / IEC 60947-5-5 / ISO 13850 / JIS C8201-1 / JIS C8201-5-1 / LROS (Lloyds register of shipping) / UL 508 / UL listed |
| Temperature: Operating | -40°C to 70°C |
| Part Depth (mm) | 57mm |
| Part Width (mm) | 40mm |
| Part Height (mm) | 40mm |
| Diameter (mm) | 40mm |
| Weight (g) | 73g |
| Packaging size / unit | 1 pc(s) |
| Material: Product | Chromium-plated metal |
| Operating Period | 300000 cycles (Mechanical) |
| Warranty | 18 Months |
| Colour | Red |
