Harting Surface housing, single locking, side entry, Pg21, 16A

Product Overview

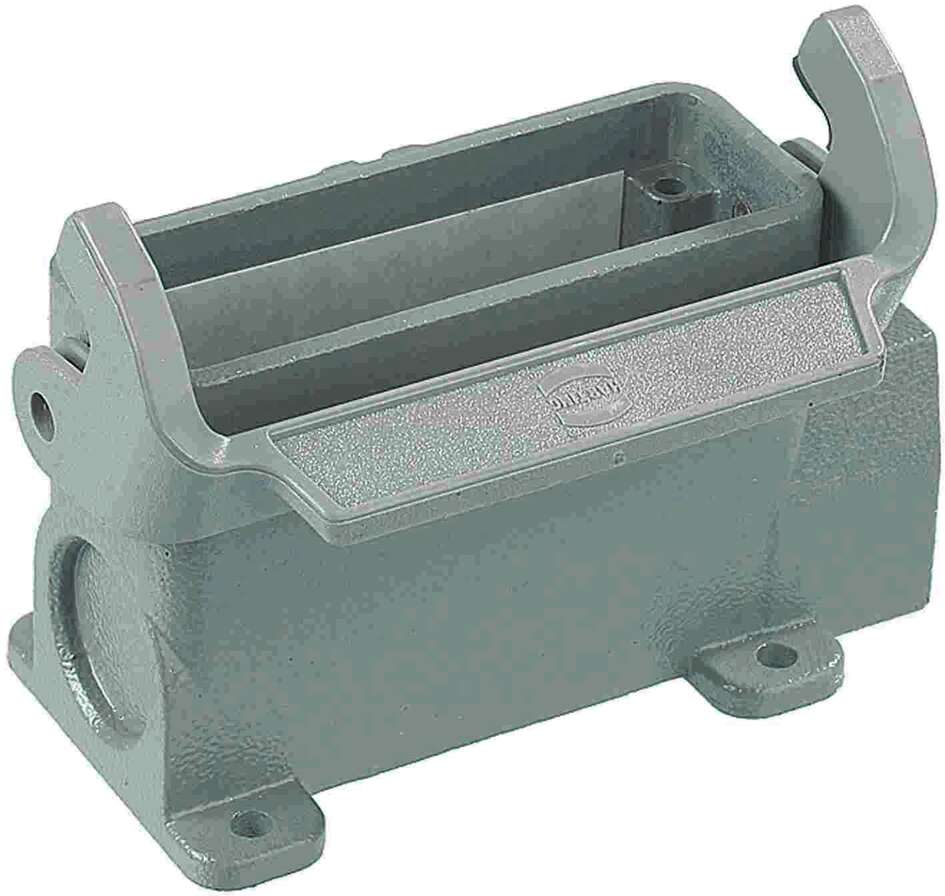

The Han 16 A-asg1-LB-21 (Article No.: 09 20 016 0252) is a surface mounted housing from HARTING's Han A® series featuring high construction design with single locking lever. This size 16A housing provides side entry cable access through PG21 cable gland for industrial connector applications requiring larger cable diameters.

Key Features:

• Han A® series surface mounted housing, size 16A
• High construction design with single locking lever
• Side entry (lateral) configuration with 1x PG21 cable gland
• Aluminium die-cast construction with powder coating
• Polycarbonate and stainless steel components
• IP65 protection rating for industrial environments

Technical Specifications:

• Article Number: 09 20 016 0252
• Category: Hoods/Housings
• Series: Han A®, Size 16A
• Type: Surface mounted housing
• Construction: High construction
• Locking: Single locking lever
• Entry Configuration: Side entry (lateral cable outlet)
• Cable Entry: 1x PG21
• Material: Aluminium die-cast (housing), Polycarbonate (PC), Stainless steel
• Finish: Powder-coated
• Color: RAL 7037 (dust grey)
• Protection Rating: IP65
• Operating Temperature: -40°C to +125°C
• Flammability Rating: UL94 V-0

Applications: Designed for demanding industrial applications requiring robust surface mounting solutions for Han A® connector systems with larger cable requirements. Ideal for automation equipment, industrial machinery, process control applications, and environments where side cable entry with PG21 gland accommodates thicker cables and cable bundles.

Benefits:

• Surface mounting design allows flexible installation options on panels and equipment
• High construction provides enhanced durability for demanding applications
• Side entry configuration facilitates convenient lateral cable routing
• PG21 cable gland accommodates larger cable diameters than standard PG16
• Single locking lever provides secure and easy connection/disconnection
• Aluminium die-cast construction ensures excellent durability and corrosion resistance
• IP65 protection rating ensures reliability in harsh industrial environments
• Wide operating temperature range (-40°C to +125°C) suitable for extreme conditions
• Compatible with Han A® and D series 16A inserts for flexible system integration

Compatibility: Compatible with Han A® and D series inserts. These housings work with appropriate inserts to provide comprehensive connectivity solutions for industrial applications requiring 16A current ratings and larger cable accommodations.
