Harting Double module, female, 2 contacts, c/s 16 - 35mm², 100A

Product Overview

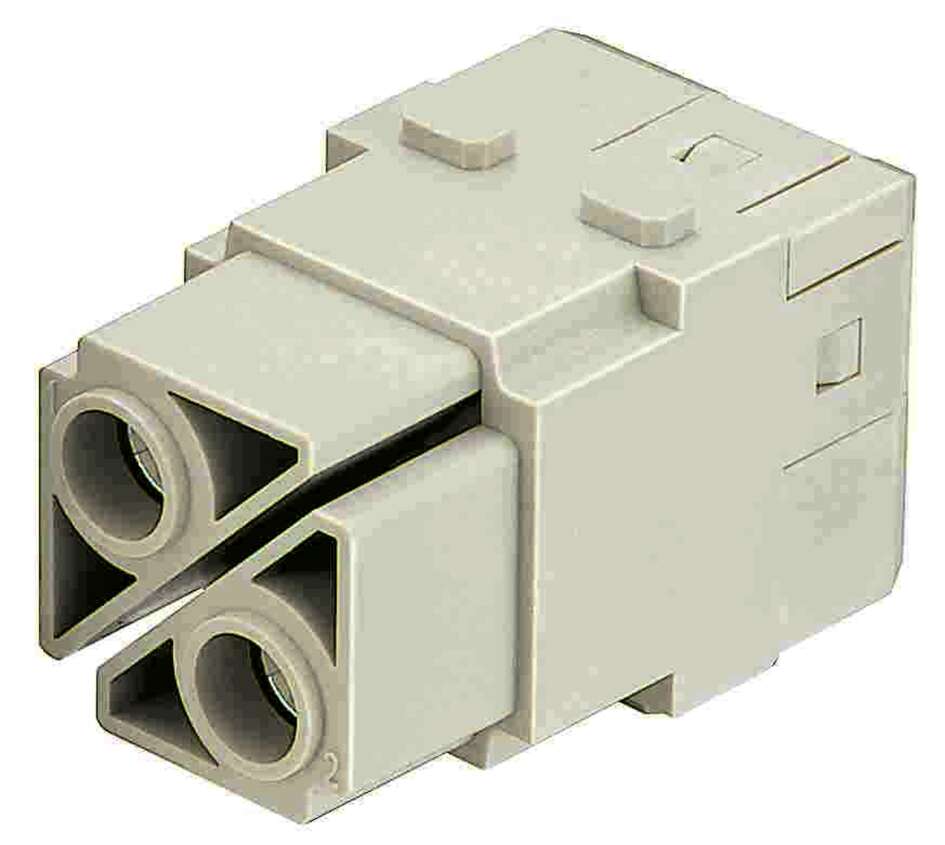

The Han 100A axial module, female 16-35 mm² is a high-current power transmission module designed for the HARTING Han-Modular® connector system. This double-module female insert features axial screw termination and is engineered for demanding industrial applications requiring reliable 100A power connections. The Han-Modular® 100 A module is a double female module with axial screw termination, featuring 2 contacts designed for high-power transmission. It supports conductor cross-sections of 16 to 35 mm², handles up to 100 A at 1,000 V, and operates in temperatures from -40 to +125 °C, with ≥500 mating cycles—ideal for demanding industrial power applications.

Key Features

• Series: Han-Modular®
• Category: Power Transmission Module
• Type: Han® 100A module
• Module Size: Double module
• Termination Method: Axial screw termination
• Gender: Female
• Contacts: 2
• Current Rating: 100 A
• Voltage Rating: 1,000 V (rated voltage), 600 V (UL rated)
• Conductor Cross-Section: 16 - 35 mm²
• Rated Impulse Voltage: 8 kV
• Material: Polycarbonate (PC)
• Color: RAL 7032 (pebble grey)
• Contact Material: Copper alloy, silver plated
• Pollution Degree: 3

Technical Specifications

This female 100A axial module provides high-current power transmission capabilities with a rated current of 100A and conductor cross-section accommodation from 16 to 35 mm². The module features a rated voltage of 1,000V with 600V UL rating and rated impulse voltage of 8kV with pollution degree 3 classification. The operating temperature range spans -40°C to +125°C with stripping length requirements of 12-14 mm and tightening torque of 6-8 Nm. The robust polycarbonate construction with silver-plated copper alloy contacts ensures reliable performance in demanding industrial environments. The double-module axial screw termination design provides secure connections for high-current applications while maintaining the modular flexibility of the Han-Modular® system. The female configuration accepts male contacts for versatile power distribution applications.

Compliance & Environmental

• IEC 60664-1 and IEC 61984 specifications
• CSA-C22.2 No. 182.3 certified (ECBT8.E235076, PVVA8.E318390)
• UL 94 V-0 flammability classification
• Operating temperature range: -40°C to +125°C
• Mating cycles: ≥500
• RoHS compliant materials
• Industrial-grade polycarbonate construction
• Professional RAL 7032 finish
• Silver-plated copper alloy contacts
• Pollution degree 3 rating

Applications

Ideal for high-power industrial applications including motor control systems, power distribution panels, and heavy machinery requiring reliable 100A female connections. Perfect for applications where high-current power reception is needed through modular connector assemblies, including industrial automation equipment, power electronics, and manufacturing systems. Excellent for process control systems, power supplies, and industrial networks where robust 100A female connections are essential for power distribution and control circuits. The double-module design and axial screw termination make it suitable for applications requiring secure, high-current connections with conductor cross-sections from 16 to 35 mm² in demanding industrial environments.
