Harting Surface housing, double locking, side entry, PG21, size 24B

Product Overview

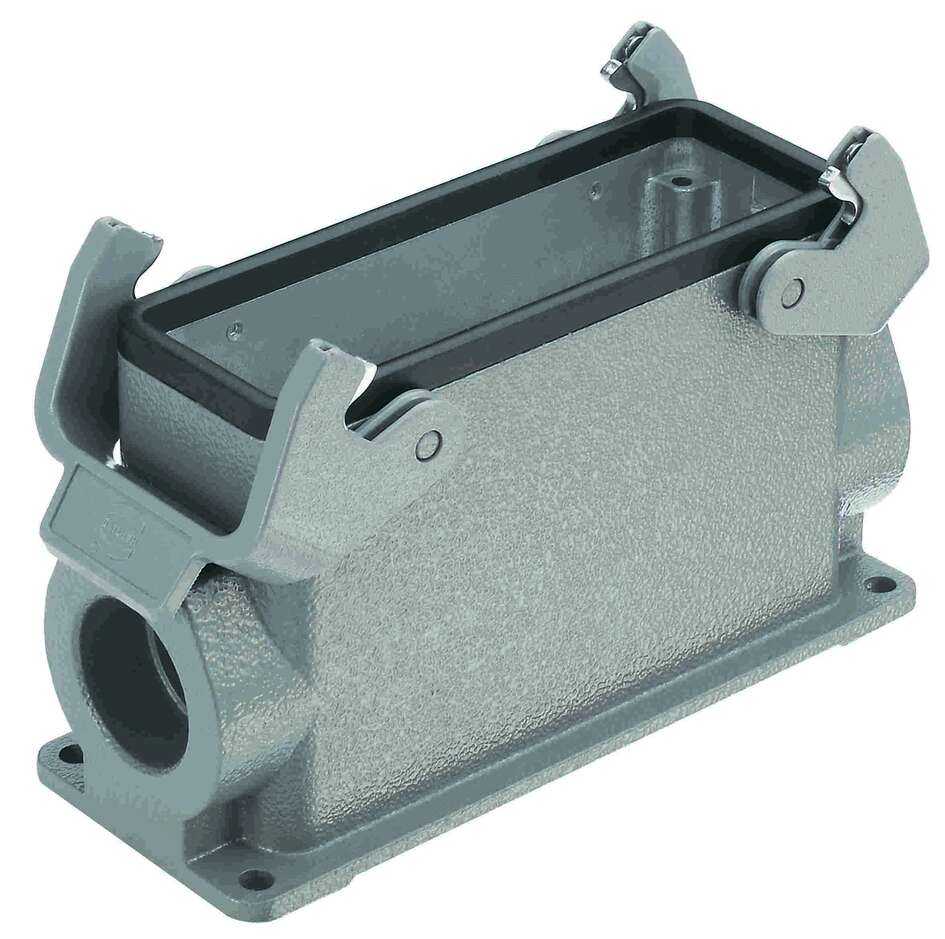

The Han B Base Surface HC 2 Levers 1 x Pg21 (SKU: 09300240230) is a high-construction surface-mount base housing designed for industrial connector applications. Features dual locking lever mechanism and single PG 21 cable entry for secure mounting solutions in size 24B applications requiring enhanced cable management space.

Key Features:

• High Construction (HC): Enhanced height for improved cable management and bend radius
• Surface Mount Design: Direct mounting to panels or equipment surfaces
• Dual Locking Levers: Two-lever locking mechanism for enhanced connection security
• Single PG 21 Entry: One cable entry with PG 21 thread configuration
• Size 24B: Large capacity housing for high-density applications
• Industrial Grade: Built for demanding industrial environments

Technical Specifications:

• Article Number: 09 30 024 0230
• Category: Hoods/Housings
• Series: Han® B
• Size: 24B
• Type: Base housing, surface mount
• Construction: High construction (HC)
• Locking System: 2 levers
• Cable Entry: 1x PG 21
• Mounting Type: Surface mount

Compliance & Certifications:

• RoHS Compliant: Yes
• Material Flammability: UL 94 V-0 rating (locking levers)
• Operating Temperature: -40°C to +125°C
• ELV Status: Compliant
• REACH: No restricted substances
• CSA Certified: CSA-C22.2 No. 182.3 ECBT8.E235076
• Industrial Standards: Suitable for demanding industrial applications

Applications: Essential for large-scale industrial machinery, high-power automation equipment, and control systems requiring size 24B connectivity. The high construction design accommodates larger cables and provides superior cable management for demanding applications.

Compatibility:

• Compatible with Han® B series size 24B inserts and mating connectors
• High construction provides enhanced cable bend radius compared to LC variants
• Single PG 21 entry optimized for medium-duty cable applications
• Requires appropriate Han B series inserts (sold separately)

Download existing graphical data for this product:

• Product Data Sheet (PDF)
• Product Declaration Certificate (PDF)
• EPLAN Data Portal - CAD Data & Technical Details
