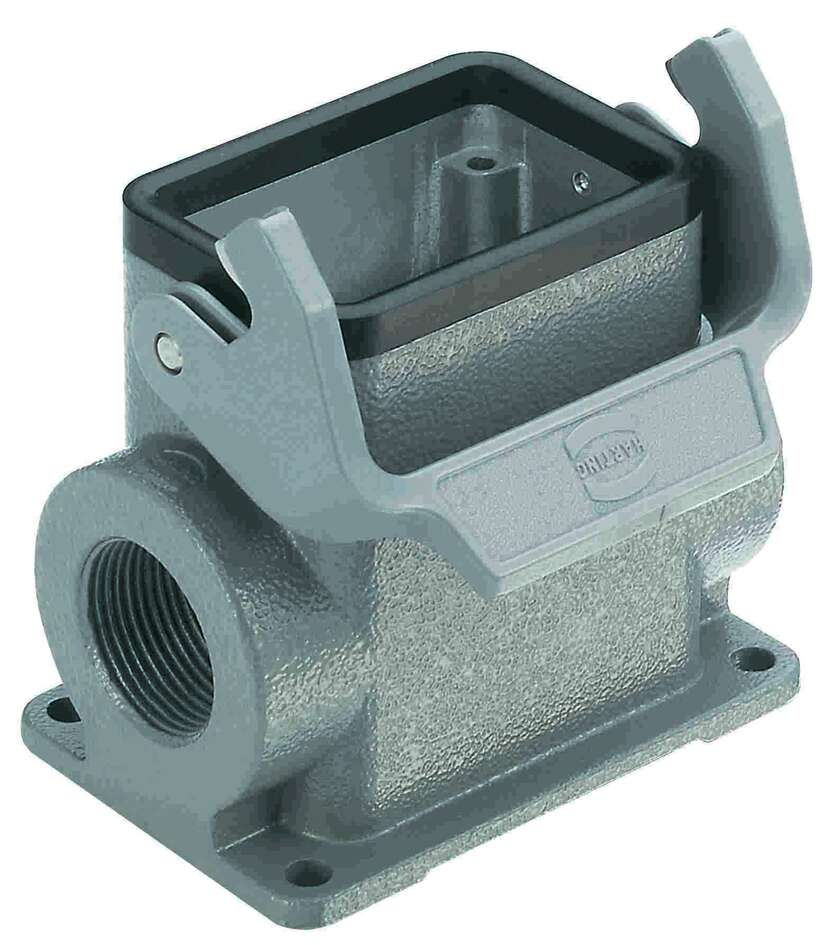

Harting Surface housing, single locking, side entry, 2x M25

Product Overview

The Han 6B-asg2-LB-M25 is a surface mounted housing designed for industrial applications requiring dual cable entry configuration with space-efficient design. Features aluminum die-cast construction with single locking lever mechanism and dual M25 cable entry configuration. Part of the Han® B series with size 6B configuration, specifically engineered for surface mounting (asg2) with dual lateral cable outlets to accommodate multiple cable routing requirements in a compact format.

Key Features

• Dual cable entry configuration with 2x M25 cable glands
• Single locking lever for secure engagement
• Size 6B with dual side cable outlets
• Aluminum die-cast construction, RAL 7037 (dust grey) finish
• Surface mounted configuration for panel installation
• Temperature range: -40°C to +125°C
• IP65 protection rating
• Han-Easy Lock® locking system with stainless steel components

Technical Specifications

• Housing Size: 6B
• Mounting: Surface mounted housing (asg2)
• Cable Entry: Dual side entry, 2x M25
• Construction: Standard construction
• Temperature Range: -40°C to +125°C
• Material: Aluminum die-cast, powder-coated RAL 7037
• Protection: IP65 protection rating
• UL Rating: NEMA 4/4X/12 (UL 50/UL 50E)
• Locking: Single locking lever with Han-Easy Lock®
• Seal Material: NBR (Nitrile rubber)
• Series: Han® B
• Standards: IEC 60529, UL 50/UL 50E

Installation Details

• Surface mounted design for secure panel installation
• Dual M25 cable glands enable multiple cable routing from lateral positions
• Single locking lever provides secure engagement despite dual cable configuration
• Han-Easy Lock® system with stainless steel and polycarbonate components
• Compatible with Han 6B insert configurations

Applications

• Industrial control systems requiring dual cable connections
• Automation equipment needing multiple cable routing options
• Manufacturing systems with separate power and signal cable requirements
• Distribution panels requiring multiple cable assembly connections
• Compact installations where dual cable entry with 6B capacity is needed
• Applications requiring reliable dual cable connections in space-efficient design

Compatibility

• Compatible with Han 6B series inserts
• Works with various Han® B insert configurations
• Part of comprehensive Han® B connector system
• Suitable for applications requiring dual cable capacity
• Compatible with standard Han® B mounting systems
• Accommodates dual cable assemblies with M25 cable glands

Environmental Protection

• Temperature: -40°C to +125°C operational
• IP Rating: IP65 protection against dust and water
• UL Rating: NEMA 4/4X/12 protection standards
• Construction: Corrosion-resistant aluminum die-cast with powder coating
• Seal Material: NBR for reliable environmental sealing

Certifications and Compliance

• Standards: IEC 60529, UL 50/UL 50E
• Environmental: RoHS compliant
• Flammability: V-0 according to UL 94 (locking components)
• Origin: Germany
• Quality: HARTING manufacturing standards
